Ruck S-Prime 12 Inch Inline Duct Fan with Insulated Casing

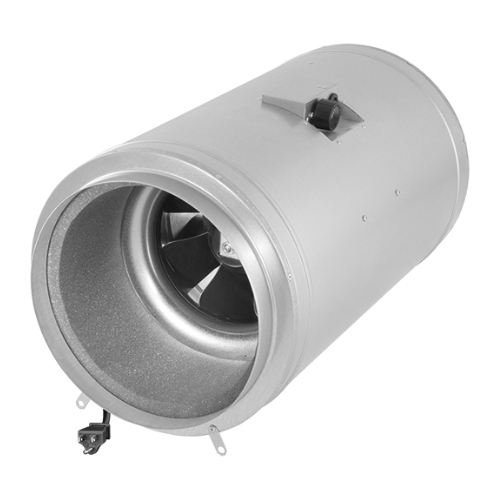

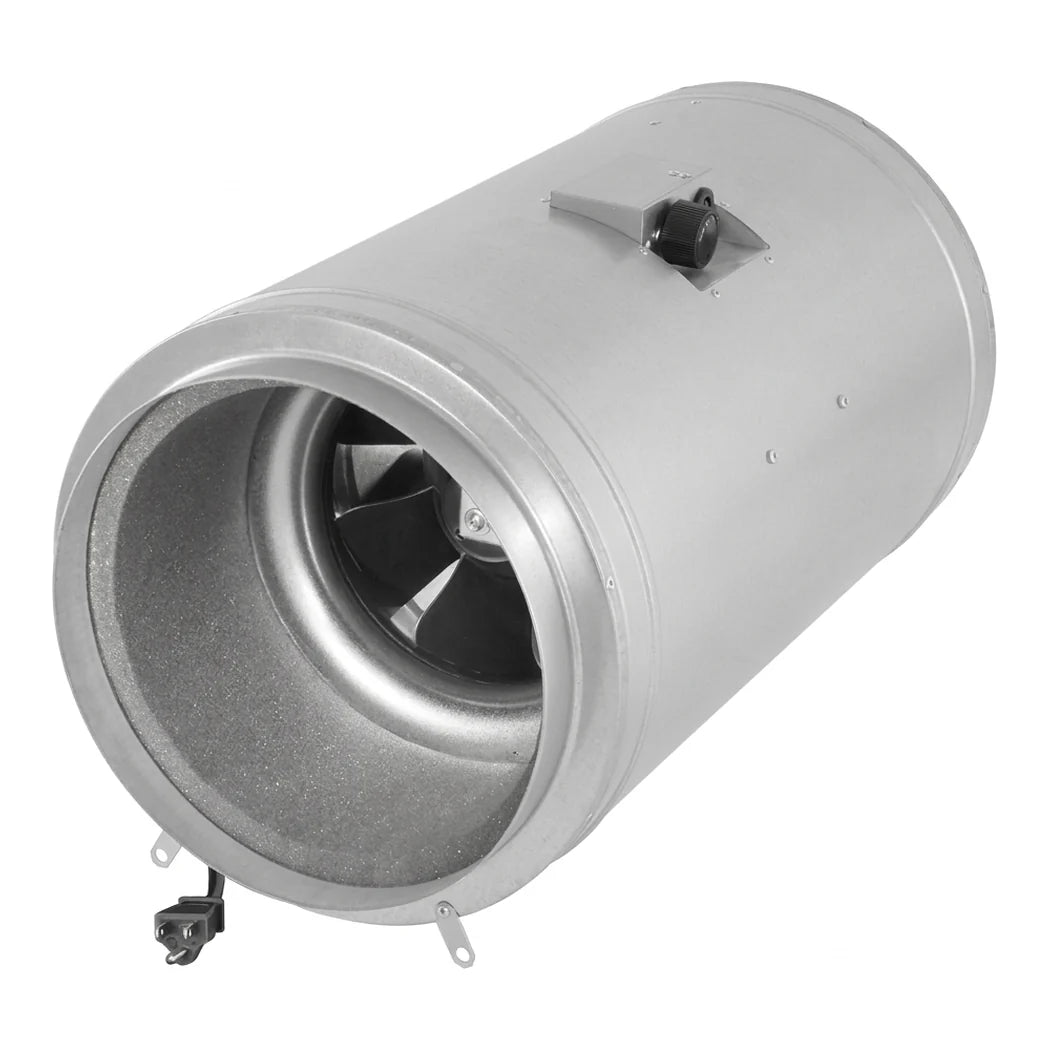

Ruck's 12-inch S-Prime puts a Prime mixed flow fan inside a sound insulated galvanized steel casing. The lining cuts the noise radiating from the fan body. Maximum airflow is 1689 CFM, and the fan works against up to 2.79 in.wg of static pressure. Its one-phase AC motor runs on 120V, 60 Hz. Power draw is 517 W, with a maximum current of 4.7 A. A power switch is built into the casing. Rated speed is 3380 rpm, rising to 3470 rpm at most. Housing break-out noise measures 65 to 68 dB(A) sound power across the fan curve. The motor carries class F insulation and TMI motor protection. Operating temperature runs from -13°F to 104°F. The fan weighs 33.5 lb. It plugs into a standard outlet and carries UL and CSA certification. Ruck covers it with a 3-year warranty.
Installing a Quiet Duct Fan on a Large Exhaust Line
At this size, the S-Prime suits a large grow room, a shared exhaust trunk or a commercial space where noise matters. The insulated casing quiets the fan body, but sound still travels down the duct, so add a silencer where the outlet is near people. The fan is heavy enough to need its own hangers or brackets fixed to structure. Never let the ducting carry its weight. On an exhaust line, mount a carbon filter on the inlet side and duct the outlet outdoors. Clamp both collars and seal every joint with foil tape. Plan the circuit as well, because the motor uses a sizeable share of a standard 15 A breaker. Keep the fan within its temperature limits, away from heat sources such as lamp exhaust. A backdraft damper on the outlet stops cold air returning when the fan is off. Disconnect power before cleaning, then wipe dust off the impeller blades between crops. Check the hangers and clamps at the same time, since vibration can loosen them over months of running.
Key Features
- 1689 CFM Mixed Flow: Prime mixed flow fan inside the casing.
- 2.79 in.wg Max Pressure: Pushes through filters and long duct runs.
- Sound Insulated Casing: Lined galvanized steel quiets the fan body.
- Integrated Power Switch: Built into the casing.
- 517 W, 120V Motor: One-phase AC, 4.7 A maximum.
- UL and CSA Certified: Backed by a 3-year warranty.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Ruck Air Movement |
| Model | S-Prime 12 in |
| Part number | 147518 |
| Duct size | 12 in |
| Max airflow | 1689 CFM (2870 m³/h) |
| Max static pressure | 2.79 in.wg (695 Pa) |
| Voltage | 120V, 1-phase, 60 Hz |
| Rated power | 517 W |
| Max current | 4.7 A |
| Switch | Integrated power switch |
| Rated speed | 3380 rpm |
| Max speed | 3470 rpm |
| Housing break-out sound power | 65 to 68 dB(A) |
| Motor protection | TMI |
| Insulation class | F |
| Temperature range | -13°F to 104°F (-25°C to 40°C) |
| Casing | Galvanized sheet steel, sound insulated |
| Weight | 33.5 lb |
| Certification | UL, CSA |
| Warranty | 3 years |
