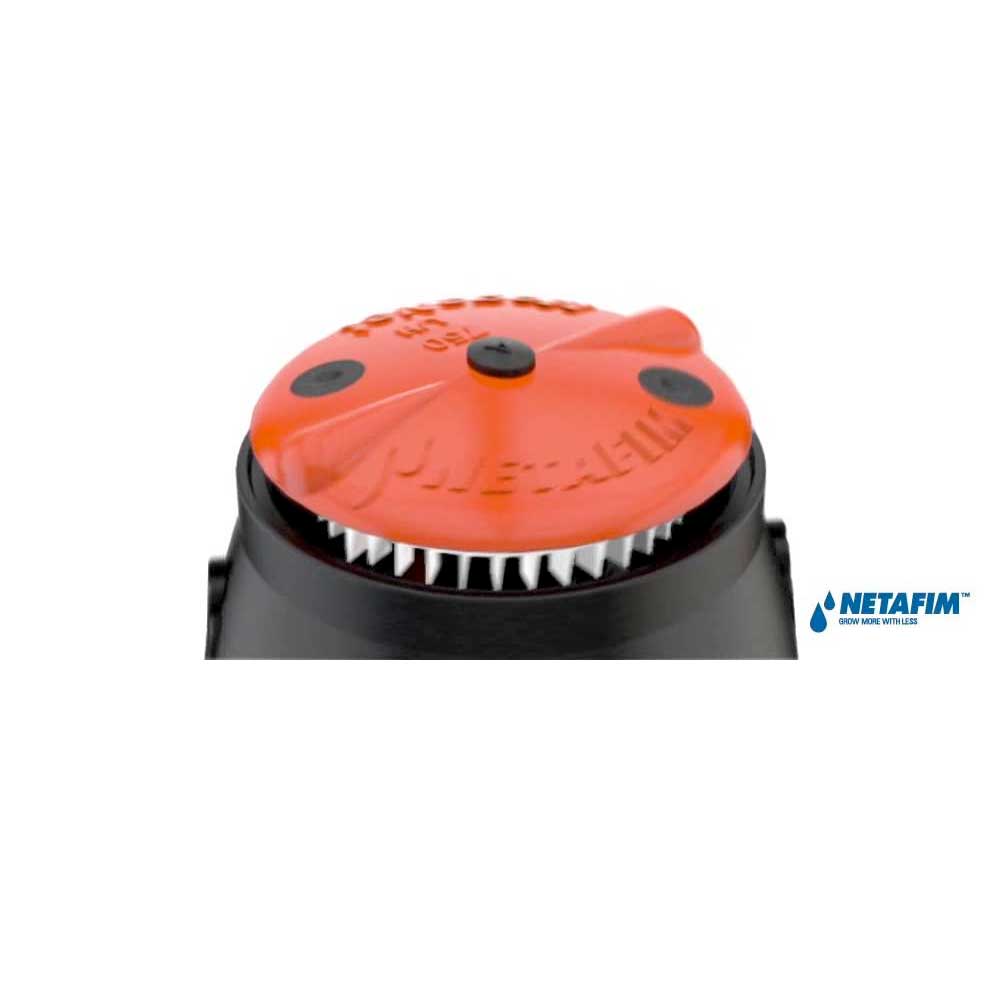

Netafim MegaNet Orange Sprinkler Head, 24° Trajectory
Wide field spacing and heavier application rates call for a larger nozzle on a long, high throw. This head is Netafim item 63600-004000, model MGN24D-286HO, under an orange cap. Its 3.37 mm nozzle delivers a nominal 2.86 GPM at 33 psi. The 24° trajectory lifts the stream for reach across open field crops and vegetable ground. It also suits cooling fruit orchards and running overhead frost protection. A pair of equal jets turns the rotor, so the head spins in balance without wobble. Drops near the head stay small, which protects freshly seeded soil from washing. The integral filter in the inlet keeps the nozzle clean and lifts out for washing. A pop-up cover shuts out insects and dirt whenever the water is off. UV-protected materials resist sun, weather and the chemicals and fertilizers applied through the system.
Choosing a Sprinkler Riser for the Orange Nozzle
Riser size matters more as flow rises, and this nozzle moves about 2.99 GPM at 36 psi. On a narrow tube with a 9 mm bore and about 4 ft long, friction costs close to 2 psi at this flow. A 1/2 in riser of the same length loses only a fraction of a psi, and a 3/4 in riser even less. Choose the riser so the head still sees 29 to 44 psi under full flow. At 44 psi the orange nozzle delivers about 3.27 GPM. On a 33 x 39 ft grid that applies about 0.22 to 0.24 in of water per hour. On heads along the field edge, the road protector, part 63620-007000, clips on and keeps water off the adjacent road. Service keys, part 63620-004500, open the head for cleaning the nozzle. Larger 24° nozzles like this one take the gray turbine, part 63620-002100, at replacement. Its black locking pin identifies the high-angle model and must go back in after every service.
Key Features
- Orange nozzle, 2.86 GPM: Nominal flow at 33 psi, 3.37 mm orifice.
- High 24° trajectory: Long reach for wide spacing.
- Field and orchard work: Crops, cooling and frost blocks.
- Integral inlet filter: Lifts out for washing.
- Pop-up cover: Shuts out insects when idle.
- 1/2 in male thread: Solid set or field stand.
Technical Specifications
| Specification | Value |
|---|---|
| Item Number | 63600-004000 |
| Model | MGN24D-286HO |
| Type | Rotating impact sprinkler, head only |
| Nozzle Color | Orange |
| Nozzle Size | 3.37 mm |
| Nominal Flow | 2.86 GPM at 33 psi |
| Flow at 36 / 44 psi | About 2.99 / 3.27 GPM |
| Recommended Pressure | 29 - 44 psi at the head |
| Trajectory Angle | 24° (high) |
| Maximum Spacing | About 33 x 39 ft (10 x 12 m) |
| Inlet | 1/2 in male thread |
| Replacement Turbine | 63620-002100 (gray) |
| Road Protector | 63620-007000, sold separately |
| Standard | ISO 8026 |
| Warranty | 1 year |
