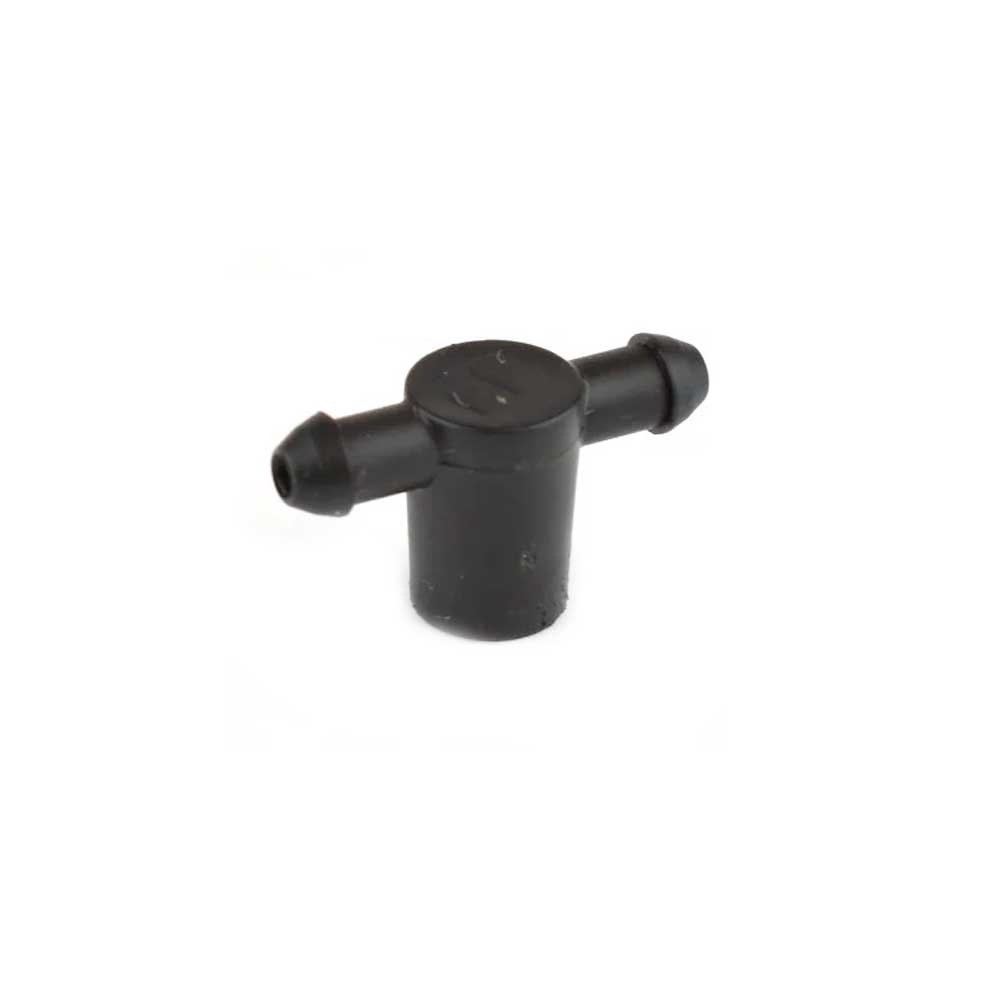

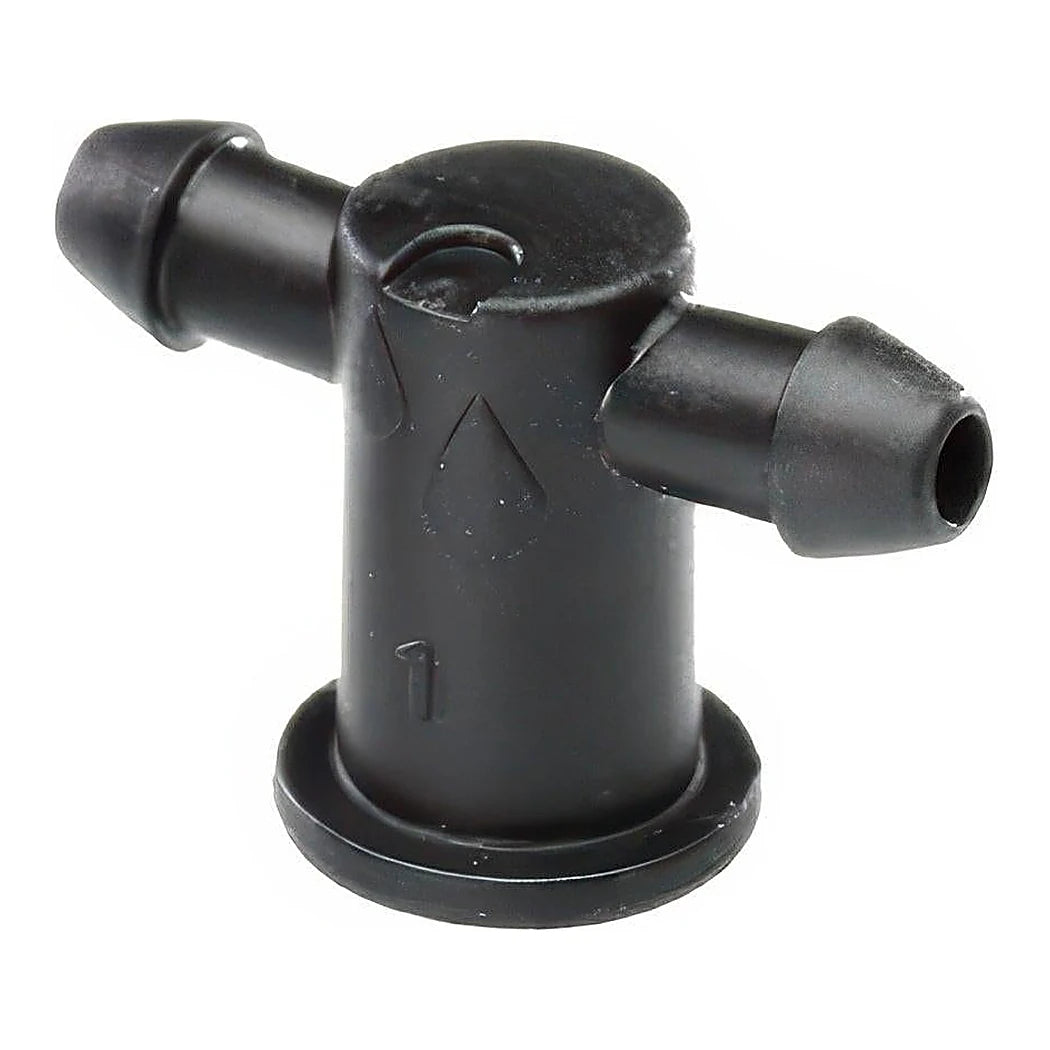

Netafim Flat 2-Way Manifold, Black, 3 x 5 mm Outlets - 100 Pack (01ADP2WPF-B)

Netafim 2-Way Manifold for Two-Pot Drip Stations

Watering two containers from one dripper halves the number of emitters punched into the supply line. This Netafim part, item 32000-002538 and model 01ADP2WPF-B, is the flat 2-way manifold that makes that split. It is the component at the heart of Netafim's 2-way multi-outlet dripper assemblies. The inlet is a female press-fit that seats over the outlet of an on-line dripper. Two barbed outlets leave the body on opposite sides, each sized for 3 x 5 mm micro tube. Water entering from the dripper divides between the two tubes and runs out to two pots. Netafim molds the manifold in black, with a low, flat profile. That shape and its durable build help it resist damage from crews working in the field. Netafim usually pairs this manifold with its 1.0 GPH WPCJL pressure compensating dripper. With that dripper each plant receives 0.50 GPH. Every bag holds 100 manifolds, enough for one hundred stations.

Building a Flat Dripper Manifold Station

Punch the supply line and insert the dripper first. Press the manifold's inlet firmly over the dripper outlet until it sits square. Push a length of micro tube in the matching size onto each barb, then run each tube to its pot. Netafim builds its own 2-way assemblies with Super Flex UV White PE tubing and angle arrow drippers. The standard angle arrow is 6 3/8 in long, and the short version at 3 3/4 in suits 4 to 5 in pots. The WPCJL dripper compensates from 10 to 45 psi and has a built-in check valve against drain-down. Flow per arrow equals the dripper flow divided by the number of outlets on the manifold. Use the same manifold and dripper across a zone so every plant gets equal water. Netafim also combines a flat 2-way with its flat 4-way manifold for additional outlet counts. Netafim notes the flat manifold separates for storage, so the supply tubing rolls up without tangling the micro tubes.

Key Features

• Two outlets: Splits one dripper between two pots.
• Female press-fit inlet: Seats over the outlet of an on-line dripper.
• 3 x 5 mm barbs: Each outlet takes 3 x 5 mm micro tube.
• Flat, low profile: Durable black body that resists field damage.
• Bag of 100: One hundred manifolds per bag.

Technical Specifications
