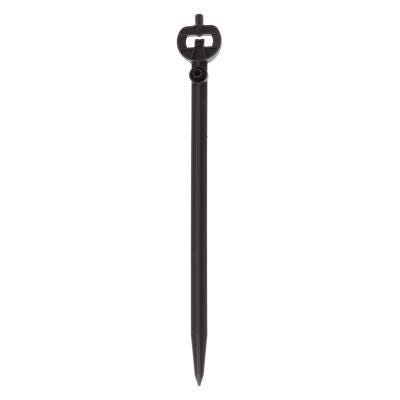

Netafim Brown PC Spray Stake With Double Spray Pattern
Mid-size nursery containers often hold a single stem in the middle, with soil to wet all around it. This Netafim head, item 22500-003100 and model 01PSDS-BR2-B, puts a double spray pattern right beside that stem. It belongs to the brown 7.9 GPH flow, though the double-pattern head itself is molded in a tan shade. Netafim recommends 7.9 GPH for pots of about 5 to 15 gallons. The bow-tie spray throws water out to both sides, away from the base of the stem. Its downward angle keeps the spray on the soil surface instead of the pot wall. Even surface wetting improves how much water the mix holds and activates top-dressed fertilizer uniformly. This head sits on the standard molded stake, about 8 in long overall. It pushes into most container mixes without a separate rod. Every bag holds 50 tan double-pattern stakes.
Fitting Out a Nursery Container Spray Stake System
Pair each head with Netafim's brown PC dripper assembly; the colors must match for the flow to be right. The assembly includes the dripper, micro tubing and an elbow that the stake presses onto. Netafim's chart allows a 288 ft run of 96 pots with 3/4 in PE pipe, 36 in spacing and 35 psi. Expect about 132 GPM for a zone of 1,000 stations at this flow. Pressure compensation means those runs can be longer, with smaller pipe and fewer valves. Operate between 22 and 55 psi, and keep 120 mesh filtration at the head. Netafim notes the design nearly eliminates misting even at 60 psi. The check valve feature prevents line drainage onto low plants on grades of up to 10 ft. Turn individual heads off by moving the tube and nipple to the side position. From the aisle, that side position shows clearly which pots are closed.
Key Features
- Double bow-tie pattern: Placed beside the stem, spraying out both sides.
- 7.9 GPH flow: Pairs with Netafim's brown PC dripper assembly.
- Standard 8 in stake: Pushes into the mix with no separate rod.
- Downward spray: Keeps water on the soil and limits mist.
- Pack of 50: Fifty heads per bag.
Technical Specifications
| Specification | Value |
|---|---|
| Item Number | 22500-003100 |
| Model | 01PSDS-BR2-B |
| Flow | 7.9 GPH (with matching brown PC dripper assembly) |
| Color | Brown flow code; double-pattern head molded in tan |
| Spray Pattern | Double (bow-tie) |
| Mounting | Standard stake, 8 in overall |
| Operating Pressure | 22-55 psi |
| Filtration | 120 mesh |
| Tubing | Flex PE 5/3 mm |
| Spray Radius | 8-10 in at 3.5 in elevation |
| Suggested Container Size | 5-15 gallons |
| Pack Quantity | 50 |
