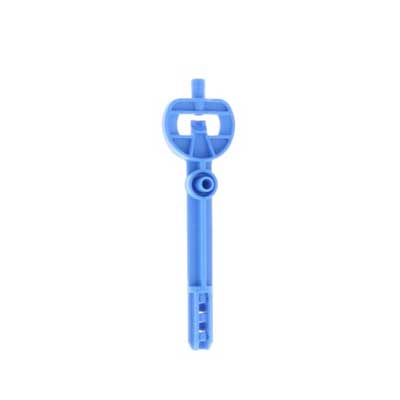

Netafim Blue Rod Mount Spray Stake With Double Pattern
Big containers of trees and shrubs in coarse bark need a spray head that stays upright and wets more than one side of the pot. This Netafim stake, item 22500-006030, is the blue 10.6 GPH head in the rod mount, double spray pattern style. Netafim's guide points the 10.6 GPH flow at containers of roughly 10 to 30 gallons. Netafim says its bow-tie pattern doubles the size of the spray pattern. That lets the stake sit close to the trunk while wetting soil on both sides. Placing it near the stem also keeps water off the base of the trunk, a weak point on some species. The rod mount slides onto a 12 gauge metal rod, sold separately in 8 in and 12 in lengths. A longer rod goes deeper into loose bark for stability and lifts the head to widen the spray. Height can be set to suit each crop rather than fixed by a molded stake. Every bag contains 50 blue stakes.
Building a 10.6 GPH Double Spray Stake Station
Each station pairs this stake with a blue Netafim PC dripper assembly, and the colors must match. The assembly holds the pressure compensating dripper, micro tubing and an elbow fitting. Punch a 3 mm hole in the supply line, insert the dripper and tubing, then press the stake onto the elbow. Netafim specifies operation between 22 and 55 psi, with 120 mesh central filtration. An inlet filter at each assembly is swept clean by the flow in the pipe. A check valve feature holds water in the line on slopes of up to 10 ft, so low pots are not flooded. On 1 in PE pipe at 72 in spacing and 35 psi, Netafim's chart allows a run of 594 ft serving 99 pots. To close a single head, move the nipple and tubing from the top of the stake to its side. That side position is visible from a distance, so crews can spot closed heads quickly. The downward spray keeps water on the mix rather than over the rim.
Key Features
- 10.6 GPH blue head: Color matches Netafim's blue PC dripper assembly.
- Double bow-tie pattern: Wets both sides when placed near the trunk.
- Rod mount: Fits a 12 gauge metal rod for coarse bark and adjustable height.
- Side shut-off: Move the tubing to the side to close one head.
- Pack of 50: Fifty spray stakes per bag.
Technical Specifications
| Specification | Value |
|---|---|
| Item Number | 22500-006030 |
| Flow | 10.6 GPH (with matching blue PC dripper assembly) |
| Color | Blue |
| Spray Pattern | Double |
| Mounting | Rod mount, 12 gauge metal rod (sold separately: 8 in or 12 in) |
| Operating Pressure | 22-55 psi |
| Filtration | 120 mesh |
| Tubing | Flex PE 5/3 mm |
| Spray Radius | 8-10 in at 3.5 in elevation |
| Suggested Container Size | 10-30 gallons |
| Pack Quantity | 50 |
