Netafim Series 80 3-Way Electric Globe Control Valve, 2 in (61ELTH2GH3)

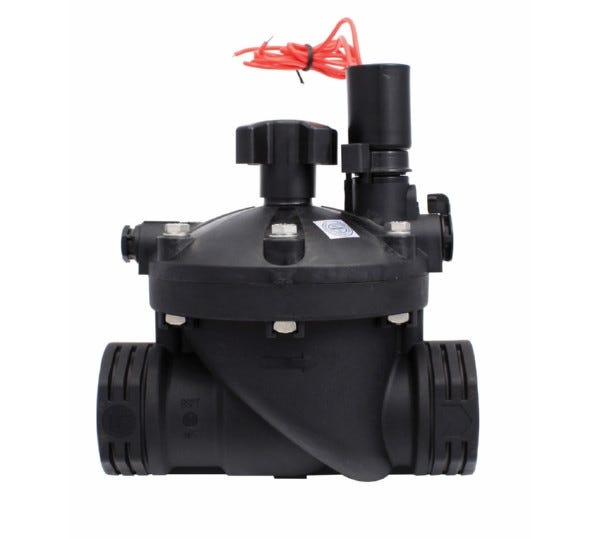

Netafim Series 80 3-Way Electric Valve on a 2 in Globe Body

A 3-way valve uses line pressure as its muscle, which makes it quick and decisive on large zones. This Series 80 build, model 61ELTH2GH3 and item 71610-014618, pairs a 3-way solenoid with the 2 in globe body. When the solenoid admits line pressure to the control chamber, the fully supported diaphragm closes the valve. When it vents that chamber, the diaphragm lifts and the zone opens wide. Loss through the body stays very low when the valve is fully open. It drops only about 0.7 psi at 40 GPM and 3.0 psi at 90 GPM. Rated flow is 0.25 to 176 GPM at 7 to 150 psi, with water up to 140°F. Every control mounts on the bonnet, and no tubes connect to the valve body. Body, bonnet and seat are glass-reinforced polyamide, with 304 stainless hardware and a 302 stainless spring. The valve measures about 6-9/16 x 6-1/2 x 6-5/8 in and weighs 2 lb.

Where an Electric Hydraulic Control Valve Fits Best

Large greenhouse ranges, nursery blocks and mainline headers are its natural home. Low loss at high flow helps long laterals hold pressure when a big zone opens. An integrated check valve keeps the valve shut until the controller signals it to open. Match the solenoid coil to the controller output before wiring, since a mismatched coil either burns out or never pulls in. This electric hydraulic control valve mounts vertically or horizontally, which helps on a tight header. Quick reaction to opening and closing keeps short mist and propagation cycles accurate. The drip-tight seal ends each cycle without dribble. The flow control stem allows manual control from full closure up to maximum capacity. Command water passes through clog-free passages, so the valve tolerates moderately dirty water. Flush new lines before first start-up, and fit a filter ahead of the zone to protect the emitters.

Key Features

• 3-way solenoid control: Line pressure drives the diaphragm for fast, positive opening and closing.
• Very low loss when open: About 3.0 psi through the body at 90 GPM.
• 0.25-176 GPM range: Runs a large greenhouse range or nursery block on one 2 in valve.
• Bonnet-mounted controls: Solenoid and controls sit on top, with no tubing plumbed into the body.
• Integrated check valve: Holds the valve shut until the controller calls for water.
• Any-way mounting: Installs vertically or horizontally to suit the header.
• Glass-reinforced nylon: Corrosion-resistant body and stainless hardware for fertigation service.
