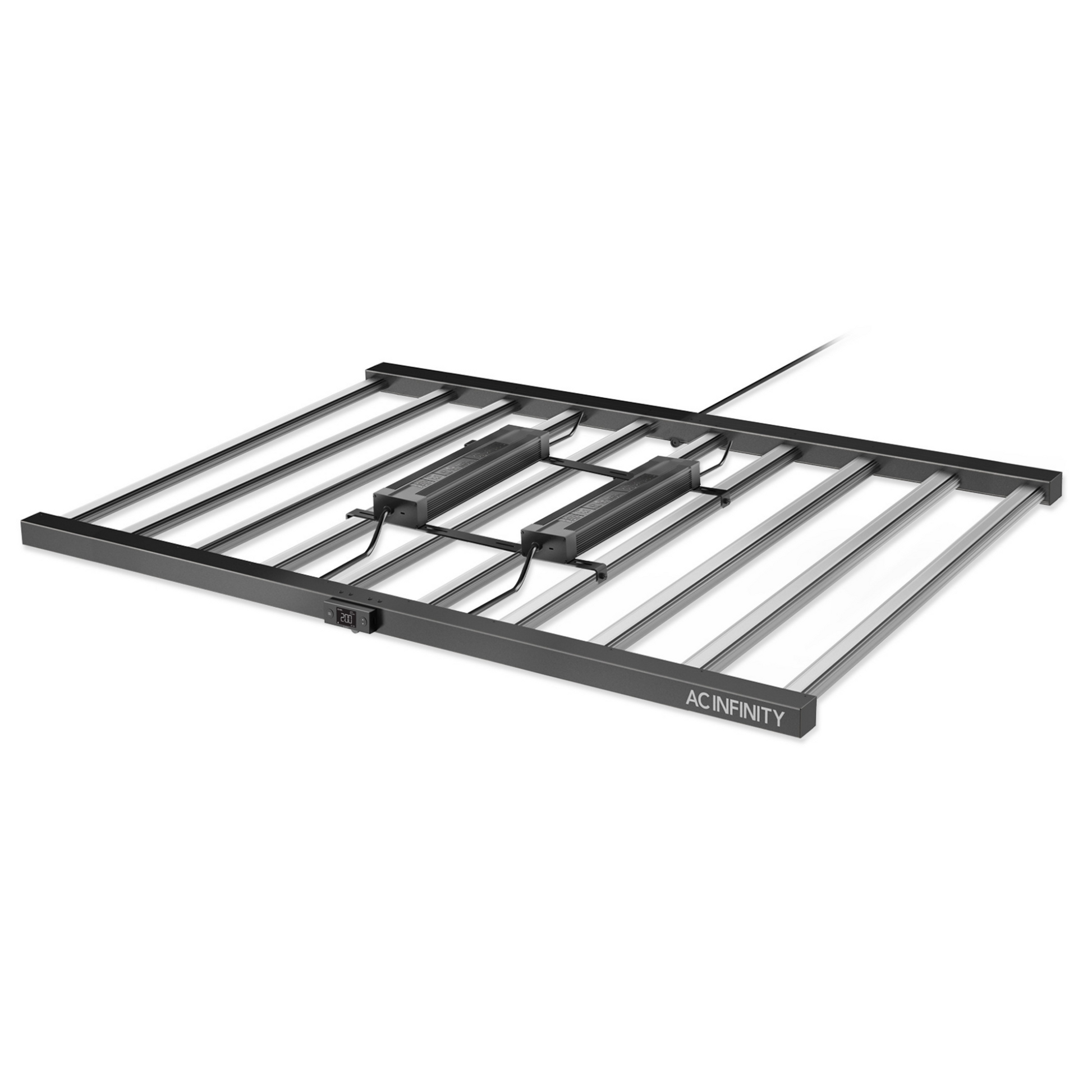

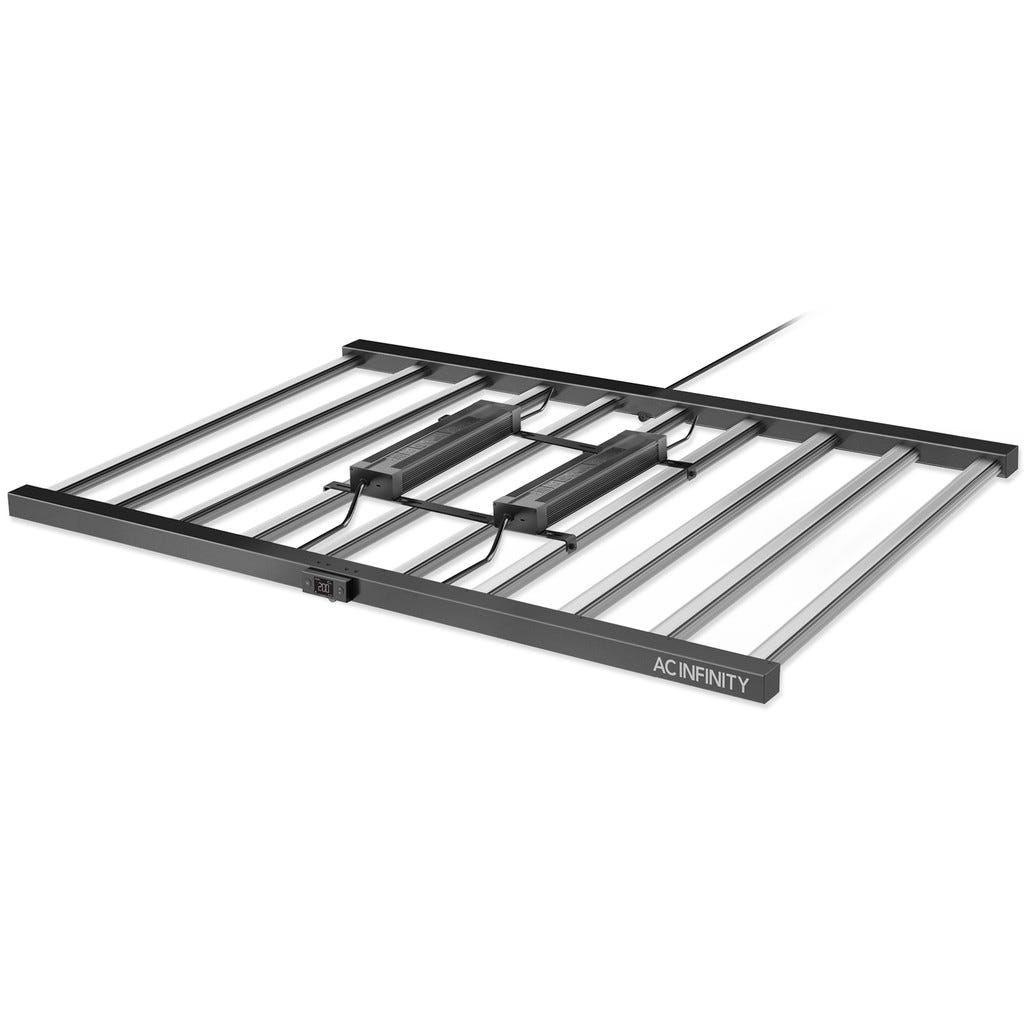

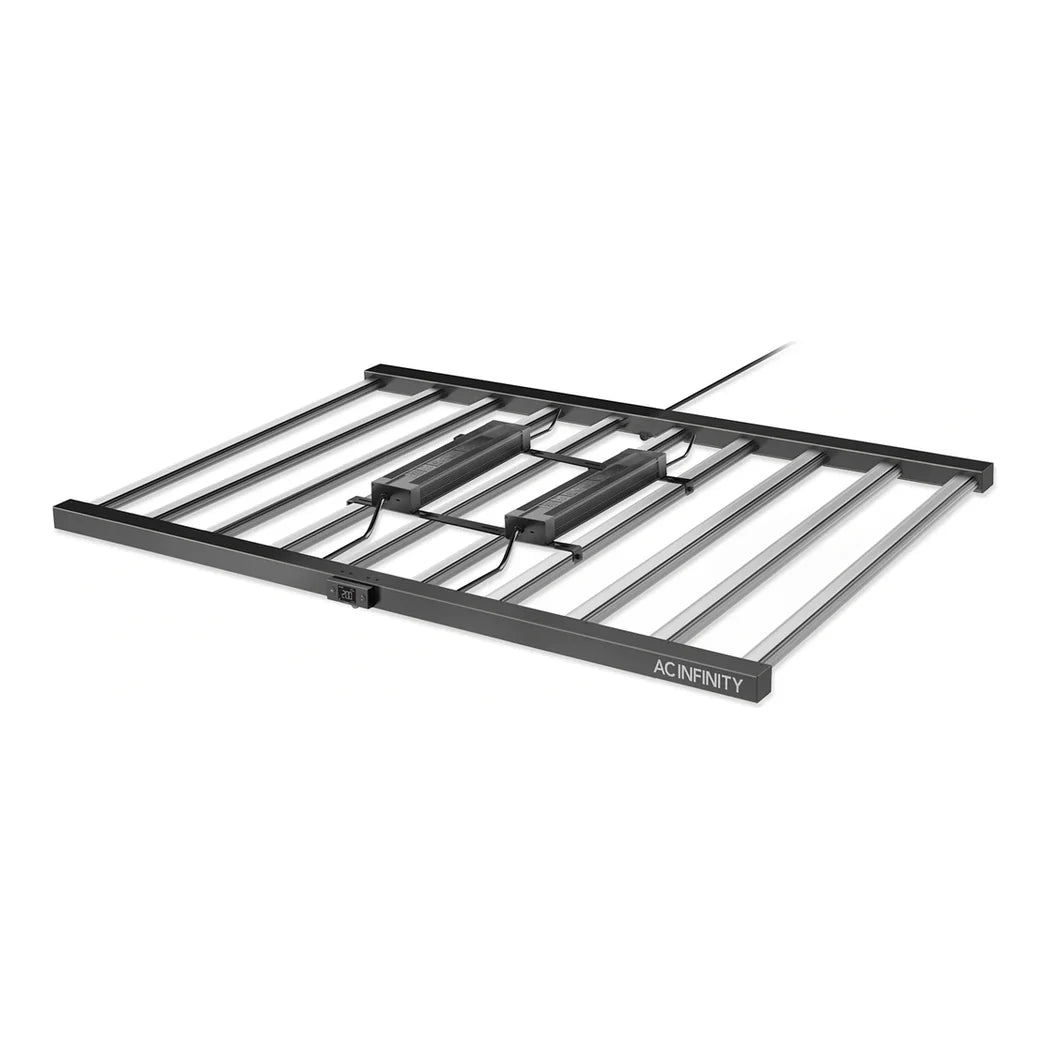

AC Infinity IONFRAME EVO10, Samsung LM301H EVO Commercial LED Grow Light, 1000W, 5x5 ft.

AC Infinity IONFRAME EVO10 Diode Map and Power Specs

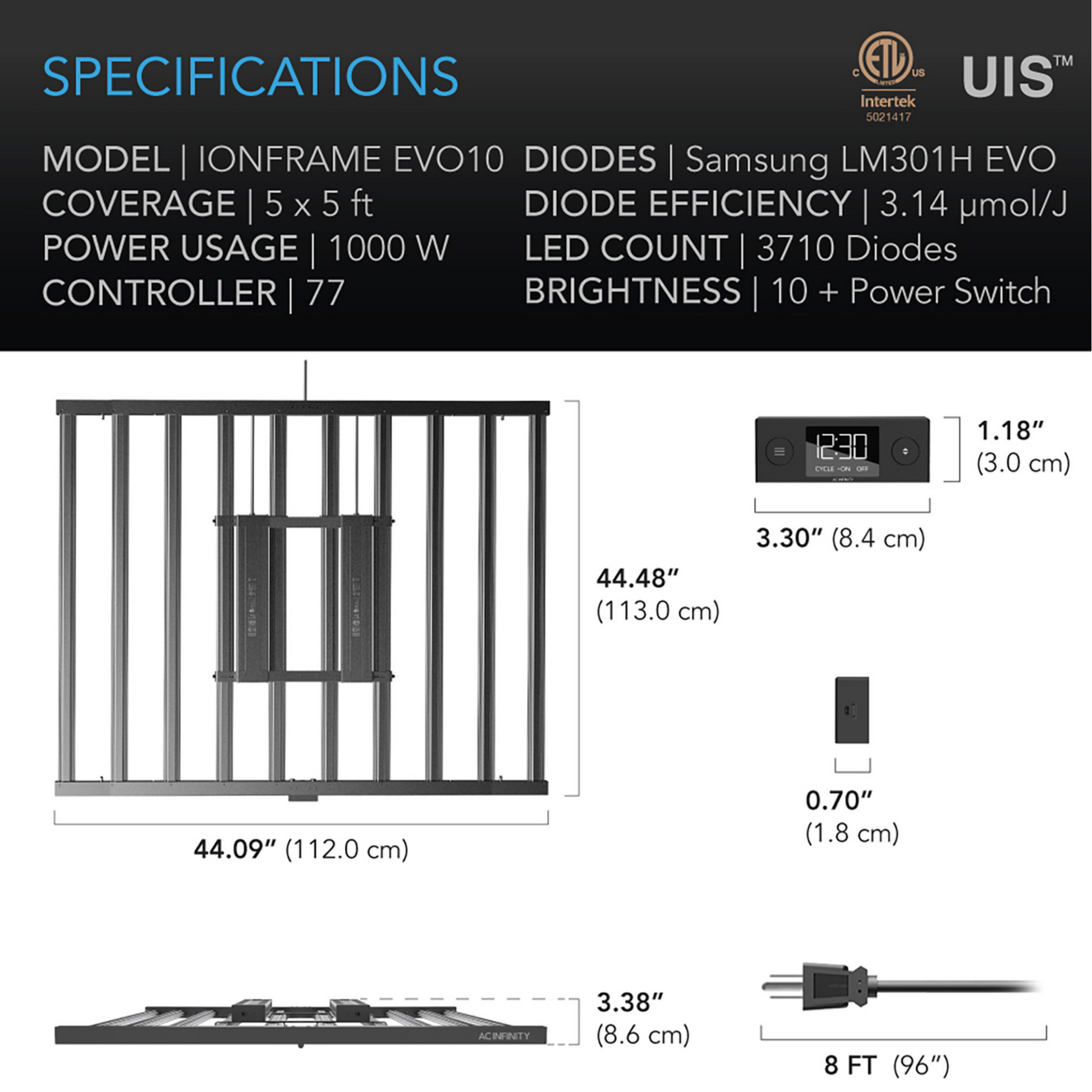

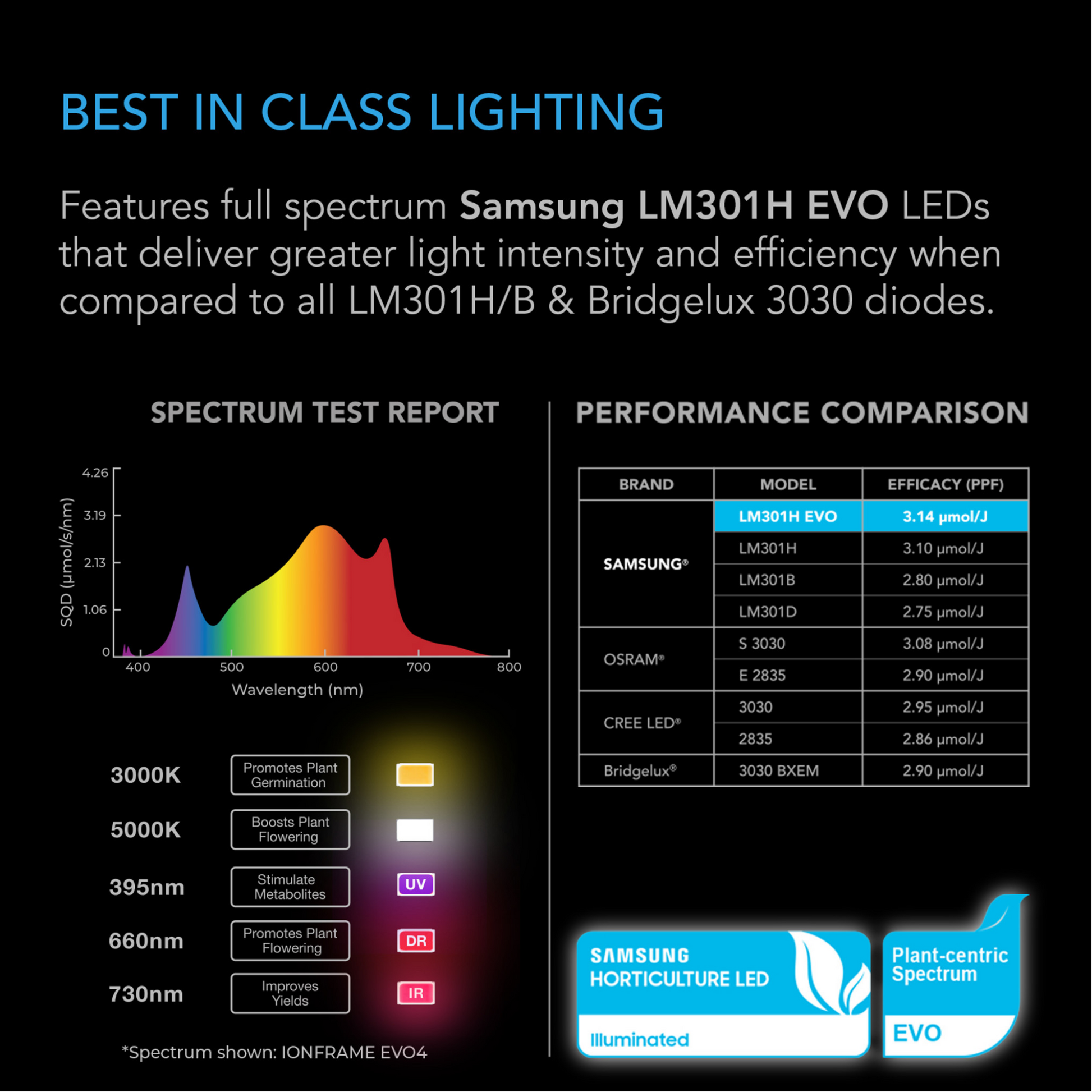

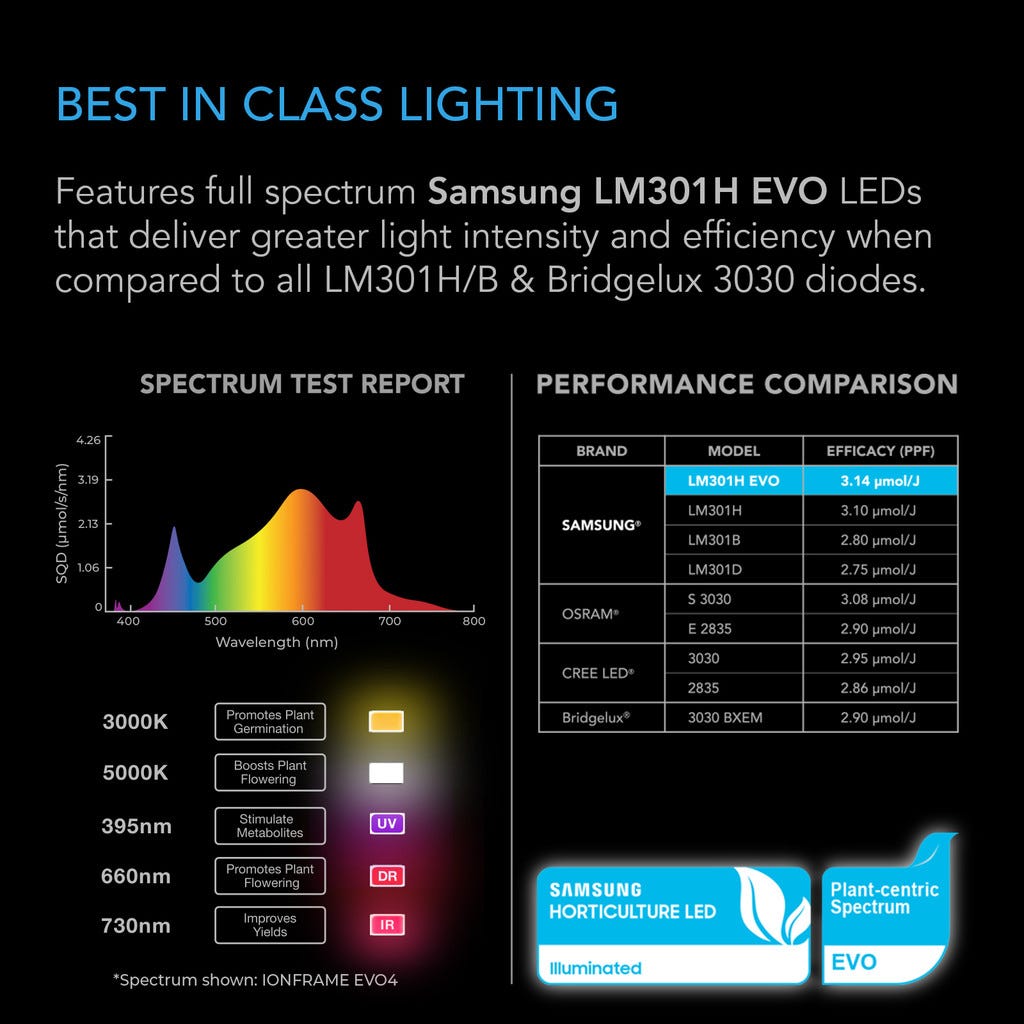

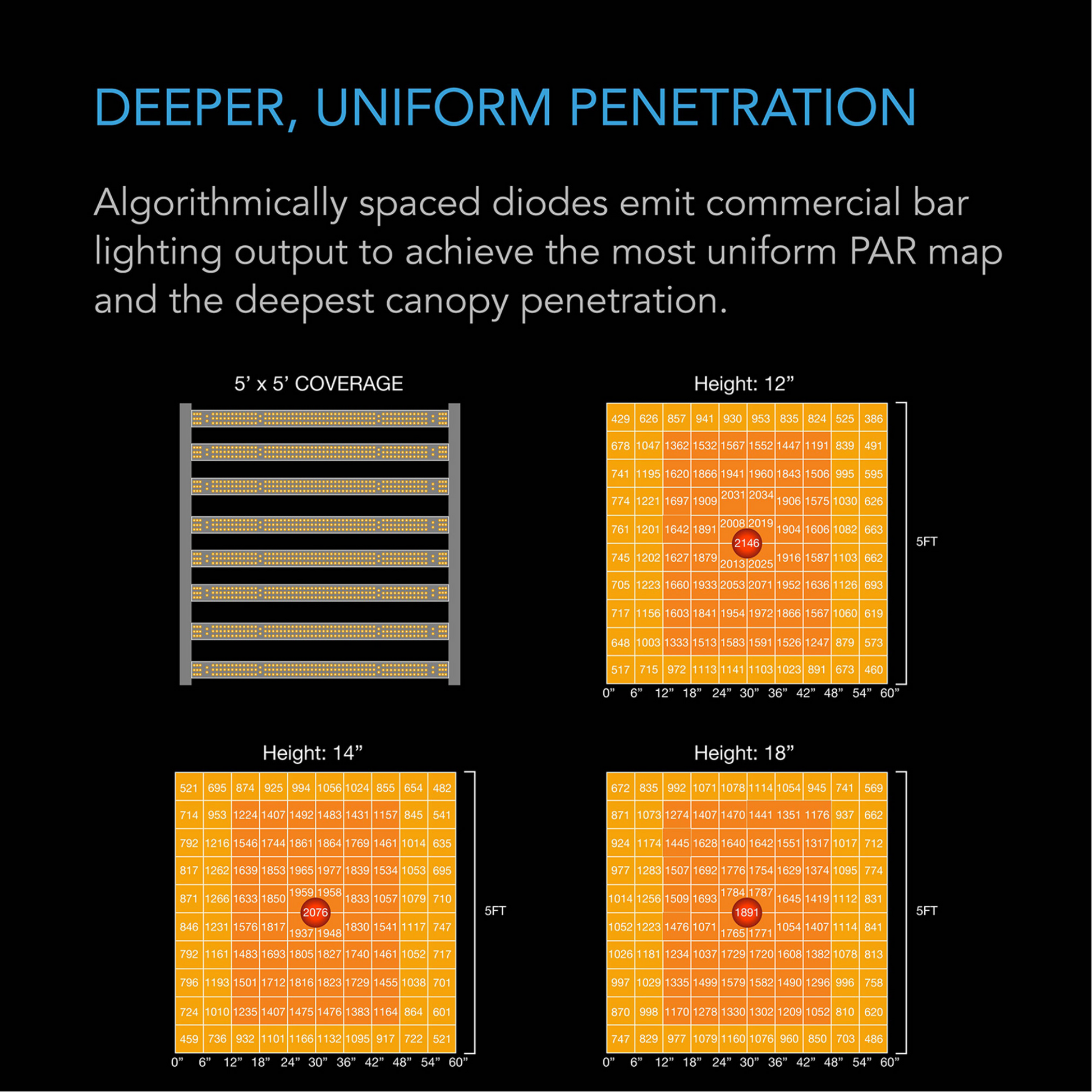

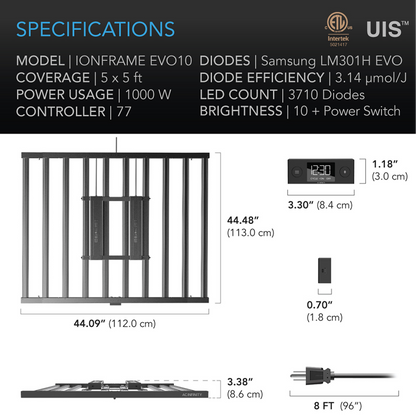

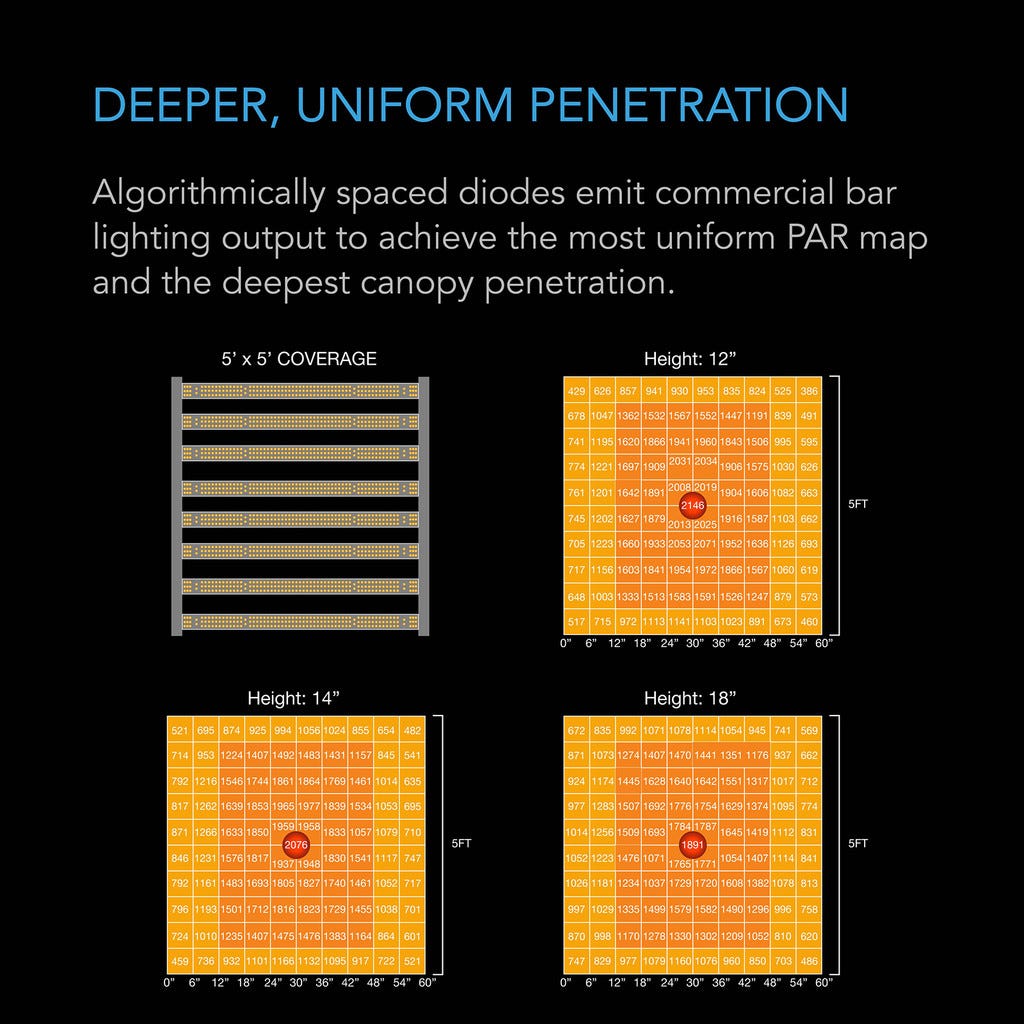

Growers usually shorten this one to the AC Infinity EVO 10, and it is the flagship of the IONFRAME line. The frame measures 44.09 x 44.48 x 3.38 in, with a removable passive-cooled driver hanging off one side. It runs on 100–277V, and draws 5.0A x2 at 120V. In practice that means a dedicated circuit, not a shared bedroom outlet. The diode count is 3,710. There are 2,360 Samsung LM301H EVO at 3000K, 1,200 at 5000K, 130 OSRAM 660 nm, 10 OSRAM 730 nm and 10 Seoul 395 nm UV chips. That spread lands at 3.14 µmol/J, and the fixture reaches 2,146 PPFD. The housing is IP65, and the diodes carry a 50,000-hour rating. It covers a 5x5 in flower, stretching to 6x6 in flower and 7x7 in veg. A schedule controller ships in the box, with ten brightness levels and a sunrise-sunset ramp.

Where a 1000W LED Grow Light Like This Fits

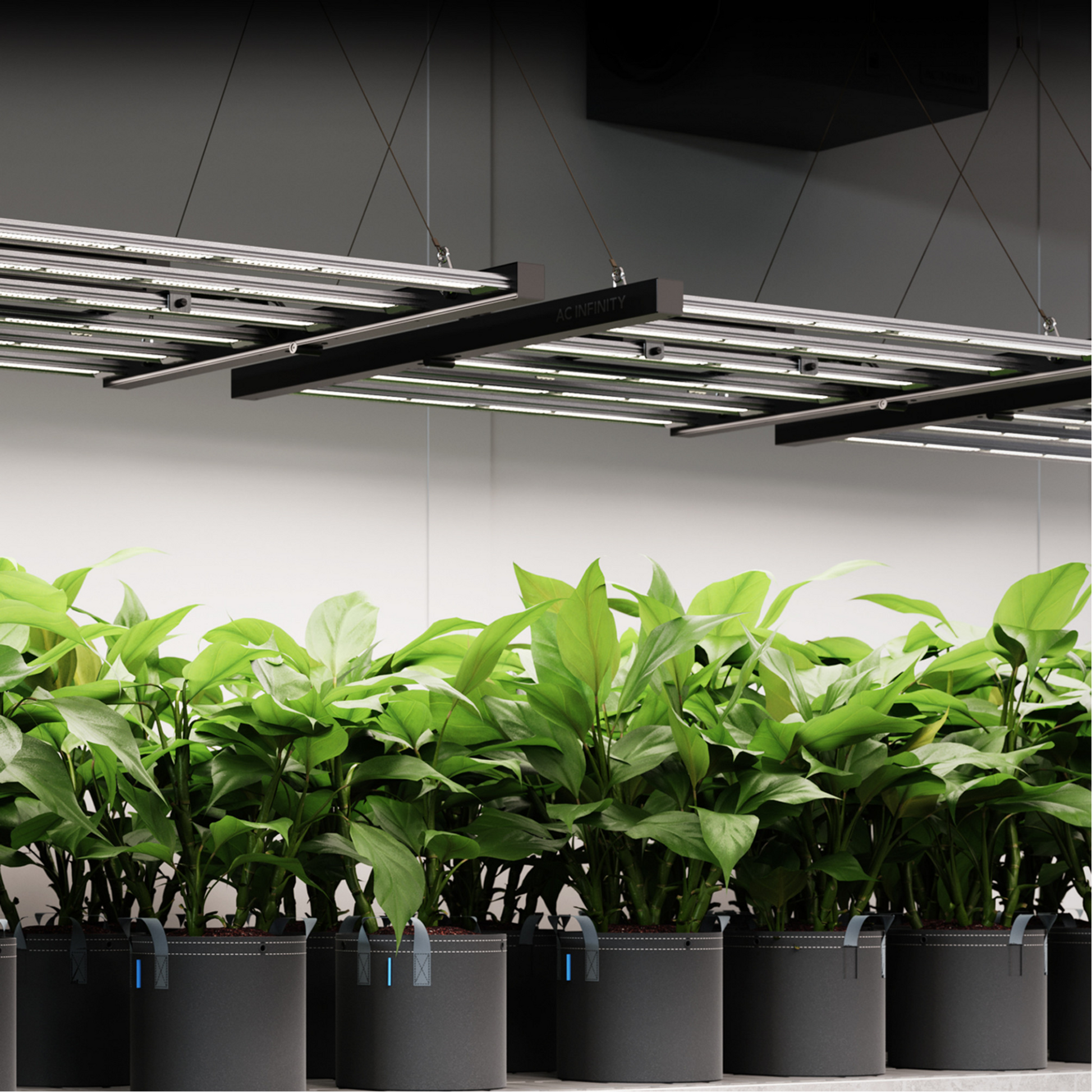

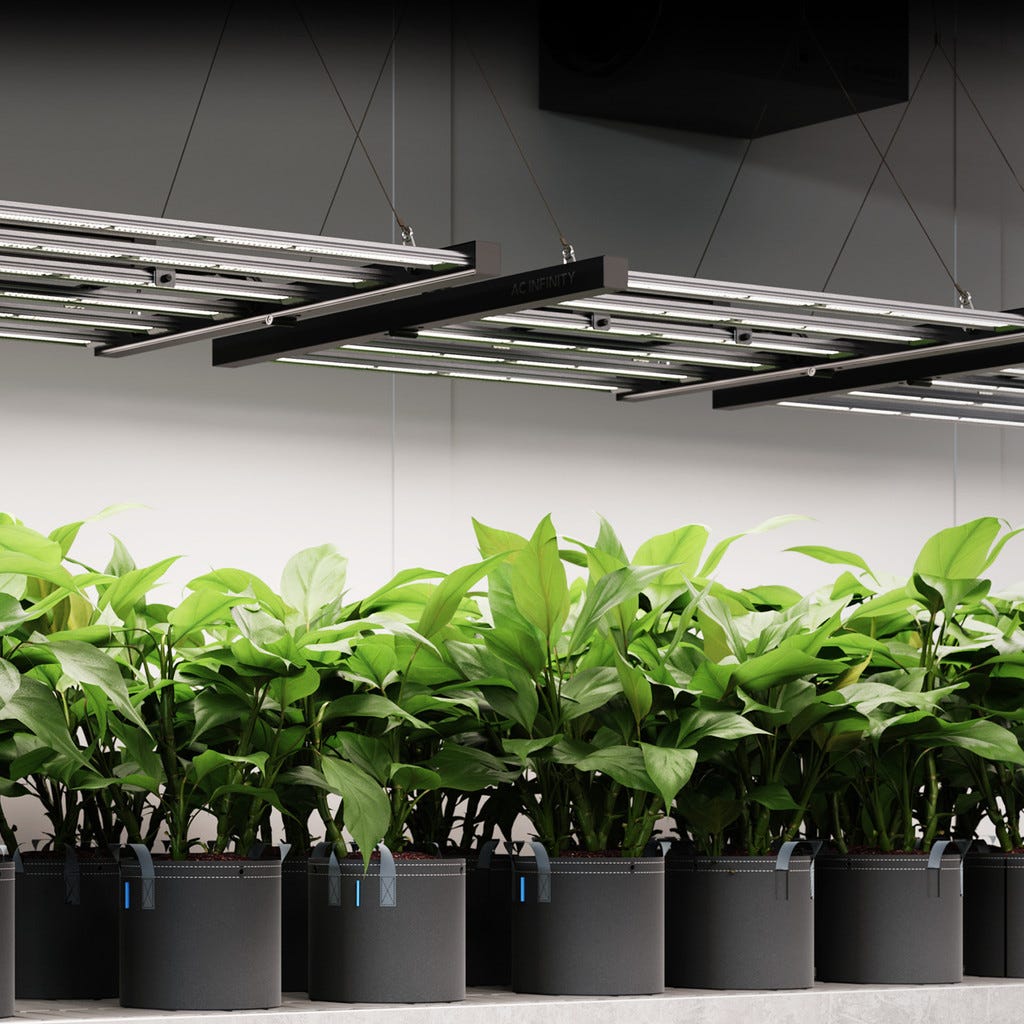

A 1000W LED grow light in bar form belongs over a 5x5 tent or a single table in a small room. Its bars spread the load wide, so the edges of the canopy get far more light than under a single square panel. Keep the fixture at least a foot above the tops and use dimming for the rest. The stage settings are forty percent for seedlings, eighty in veg and full power once flowers set. Each controller port can run a chain of lights through an adapter, and the drivers support long daisy chains in commercial rows. That makes it easy to run a whole room from one schedule and one sunrise setting. The UV and far red channels are small, so treat them as finishing accents rather than a dedicated UV program. People ask whether it can light a 4x8. It can light the middle well, but the ends of an eight-foot tent will run noticeably dimmer. Two smaller IONFRAME fixtures cover a 4x8 more evenly than one oversized frame.

Key Features

• 3,710-diode full spectrum: LM301H EVO whites plus OSRAM reds and Seoul UV cover seedling to harvest in one fixture.
• Wide bar-style frame: Spreads light across the canopy edges, not just the center, for more even flower sites.
• Removable passive driver: Mount it remotely to pull driver heat out of tight rooms and tents.

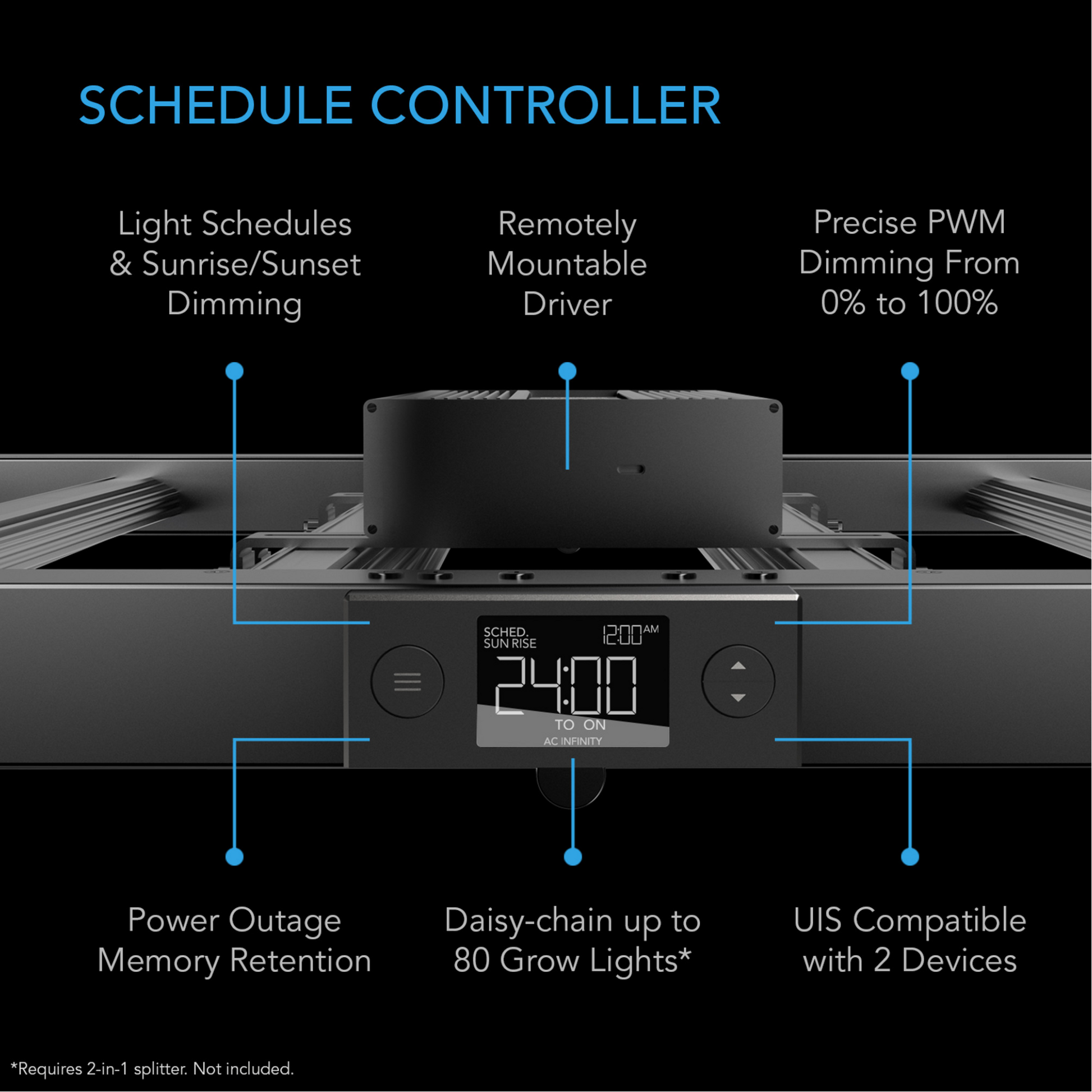

• Schedule controller included: Ten brightness levels, clock timing and sunrise-sunset ramps without extra hardware.
• Daisy-chain ready: Link a row of fixtures to run a whole room from one controller.
• IP65 housing: Stands up to humid flower rooms and routine foliar spraying.
• 100–277V input: Runs on 120V, 240V or 277V commercial service.
