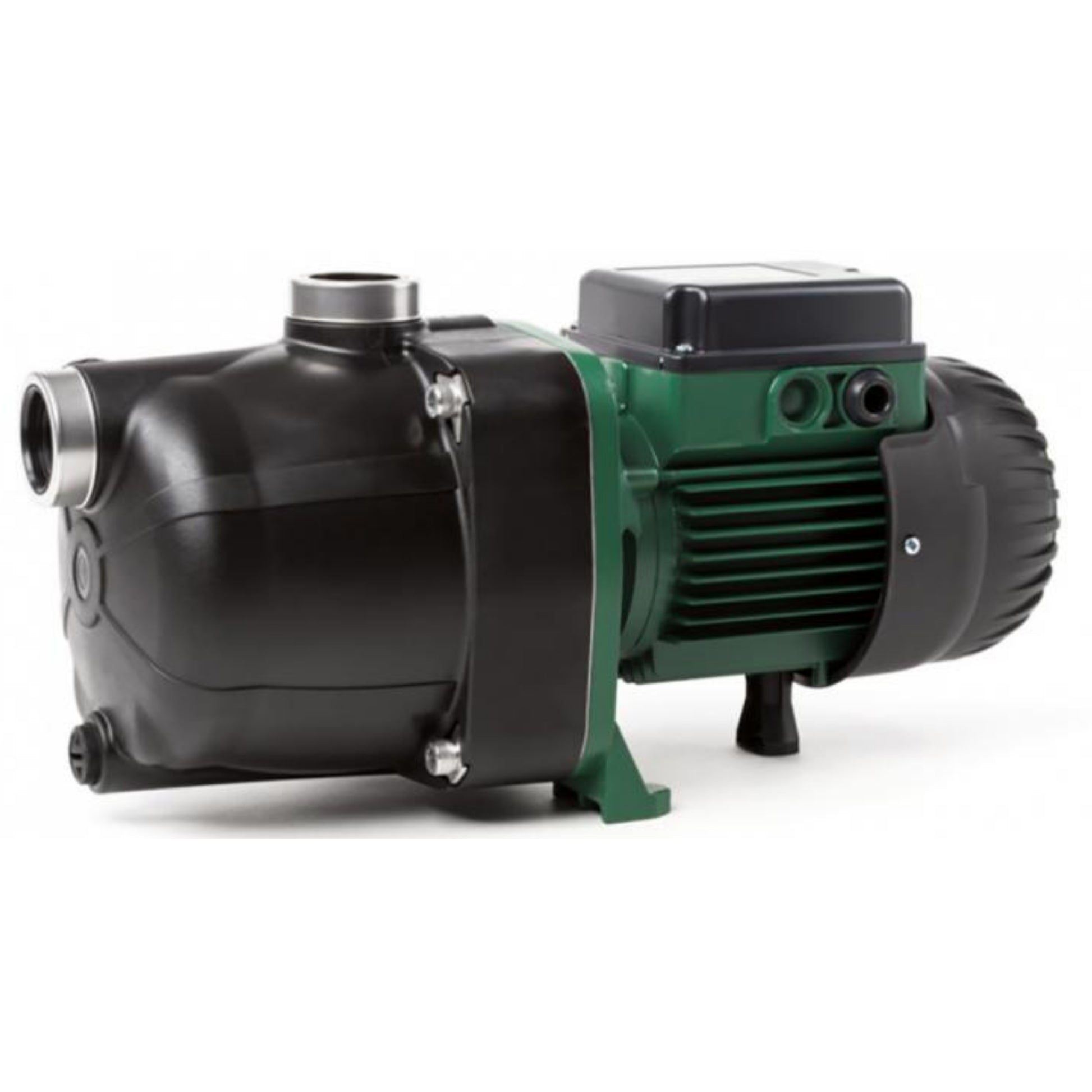

DAB JETCOM 102 M for Lifting Water Into Irrigation Lines

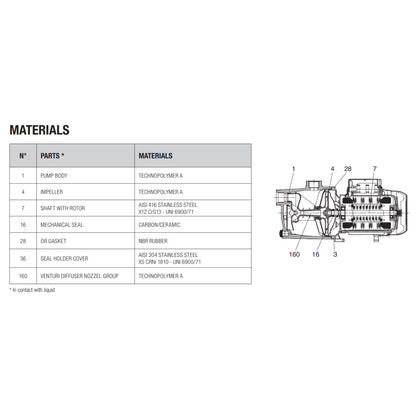

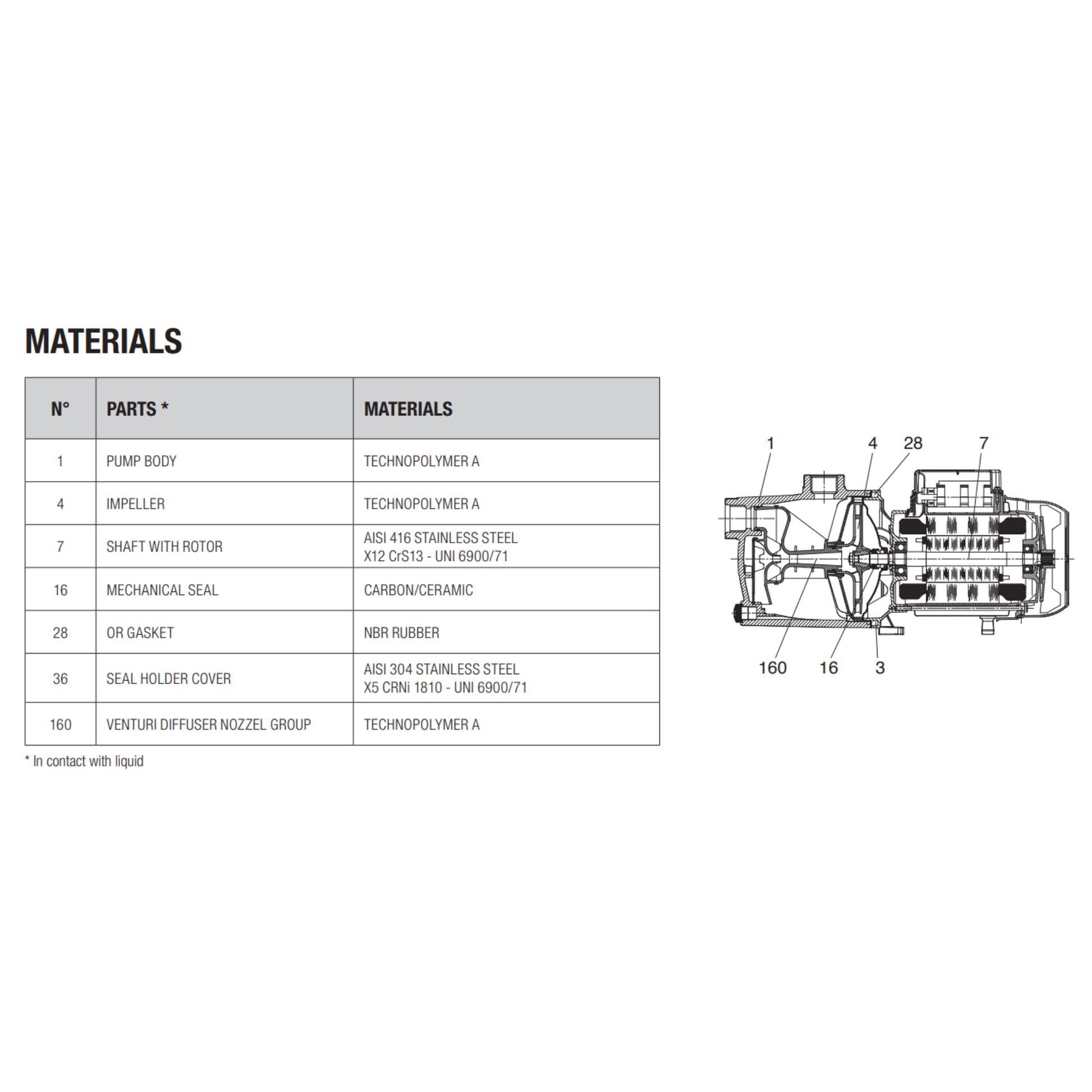

The JETCOM 102 M is the 1 HP model in DAB's JETCOM range of self-priming surface pumps. A built-in venturi ejector lets it clear air from the suction line and pull water up from below the pump. The 1 HP (0.75 kW) motor runs on 115/230V, 60 Hz single phase. The pump body is technopolymer, so the housing will not rust in a damp pump room. The impeller, diffuser, venturi tube and sand guard are technopolymer as well. Stainless steel adjustment rings and a carbon and ceramic mechanical seal complete the wet end. Suction and discharge are both 1 in NPT. Maximum operating pressure is 87 psi. The motor carries an IP44 rating, with an IP55 terminal board and Class F insulation. Overall length is about 16.7 in, and the pump weighs roughly 20.9 lb.
Setting Up a Dual Voltage Jet Pump in the Grow
Being able to wire for either voltage makes this pump easy to place in older barns, sheds and greenhouses. Growers use it to move water from a rain tank to a mixing reservoir or to feed a modest drip zone. It also boosts a weak supply line feeding hose bibs and wash-down points. The ejector design tolerates small amounts of air and fine sand, which suits rainwater and pond sources. Mount it horizontally on a firm base, either fixed or as a portable unit. Fill the pump body before the first start, then let it pull the suction line full. Fit a foot valve and strainer at the end of the suction pipe to hold prime and screen debris. Keep every suction joint airtight, since a small leak can stop the pump from lifting. Clean water from 32 to 95°F suits domestic use, with ambient air up to 104°F. No power cord is included, so plan the electrical connection ahead of install.
Key Features
- Self-priming ejector: Clears air from the suction line and lifts water from below the pump.
- Dual-voltage motor: Wires for 115V or 230V to suit the supply in older or mixed buildings.
- Technopolymer body: A rust-free housing for damp pump rooms and outbuildings.
- Handles air and fine sand: Keeps working with small amounts of entrained air or grit from rainwater and ponds.
- Fixed or portable: Runs bolted down or moved between tanks, as long as it stays horizontal.
Technical Specifications
| Specification | Value |
|---|---|
| Model | JETCOM 102 M |
| Part number | 60119500 |
| Power supply | 115/230V, 60 Hz, single phase |
| Motor | 1 HP (0.75 kW P2) |
| Max operating pressure | 87 psi |
| Connections | 1 in NPT suction and discharge |
| Pump body | Technopolymer |
| Impeller, diffuser, venturi | Technopolymer |
| Mechanical seal | Carbon/ceramic |
| Motor protection | IP44 (terminal board IP55) |
| Insulation class | F |
| Liquid temperature | 32-95°F domestic use; 32-104°F other use |
| Max ambient temperature | 104°F |
| Length | Approx. 16.7 in |
| Weight | 20.9 lb |
| Installation | Horizontal, fixed or portable |
| Power cord | Not included |
