DAB ESYBOX MAX 60/120 T Booster Pump | 380-480V Three Phase, 3.5 HP, 76 GPM

DAB ESYBOX MAX 60/120 T for Three-Phase Pump Rooms

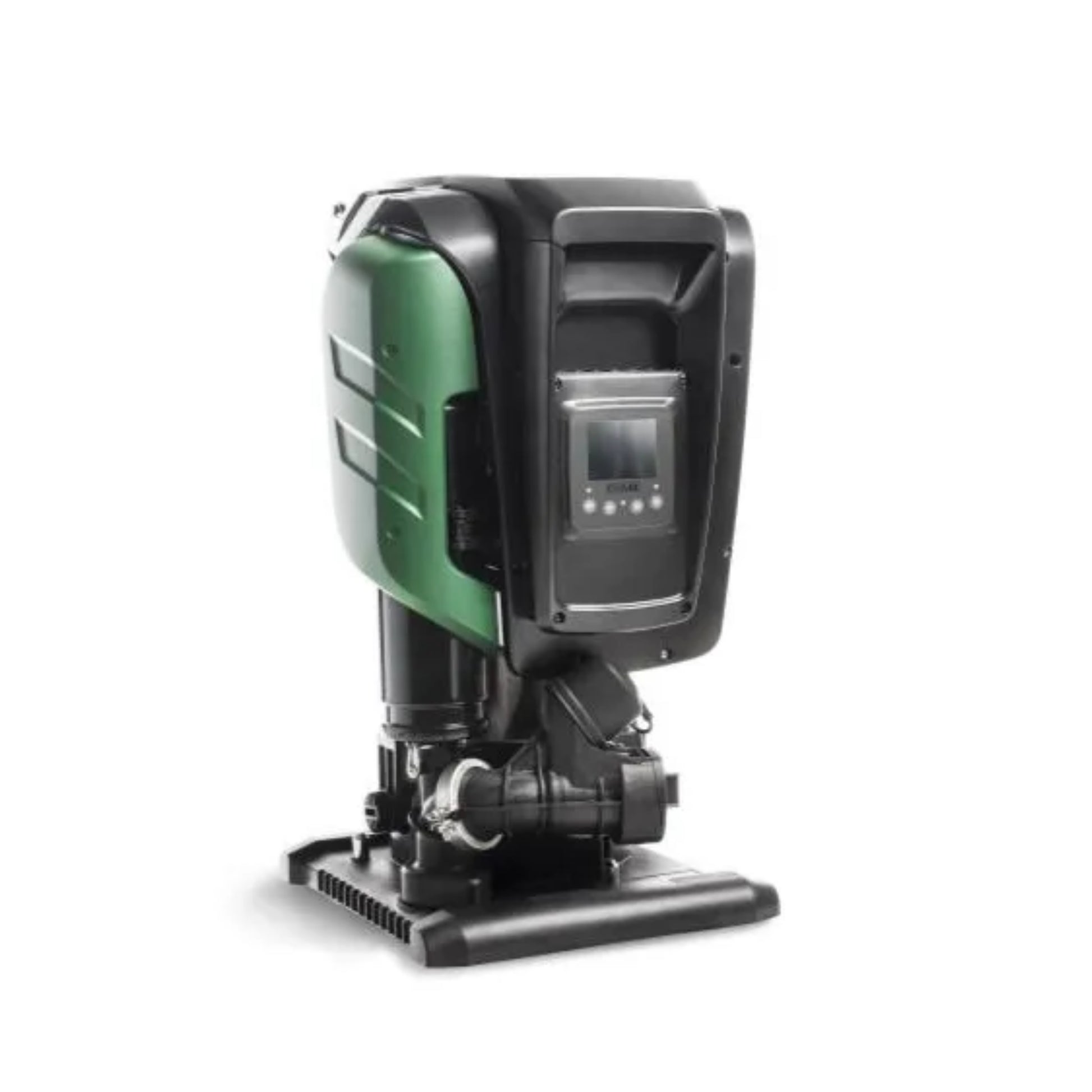

The ESYBOX MAX 60/120 T is DAB's commercial constant pressure pump for sites with three-phase power. A vertical multistage pump, inverter, pressure sensors and expansion vessel share one housing. This model runs on 380-480V three phase and drives a 3.5 HP motor drawing about 4.4 A. Three impellers deliver up to 76 GPM and a maximum head of roughly 226 ft. The set point adjusts from 15 to 174 psi, and it leaves the factory at 45 psi. Inlet pressure must stay at or below 72 psi. Connections are 1-1/4 in on the suction side and 2 in on discharge. The motor is rated IPX5 with Class F insulation. Water up to 104°F is fine, in rooms as warm as 113°F. The unit weighs about 63.9 lb and lists UL 778, CSA C22.2 Number 108, NSF/ANSI 61 and NSF/ANSI 372.

Sizing a Three-Phase Booster Pump for a Commercial Grow

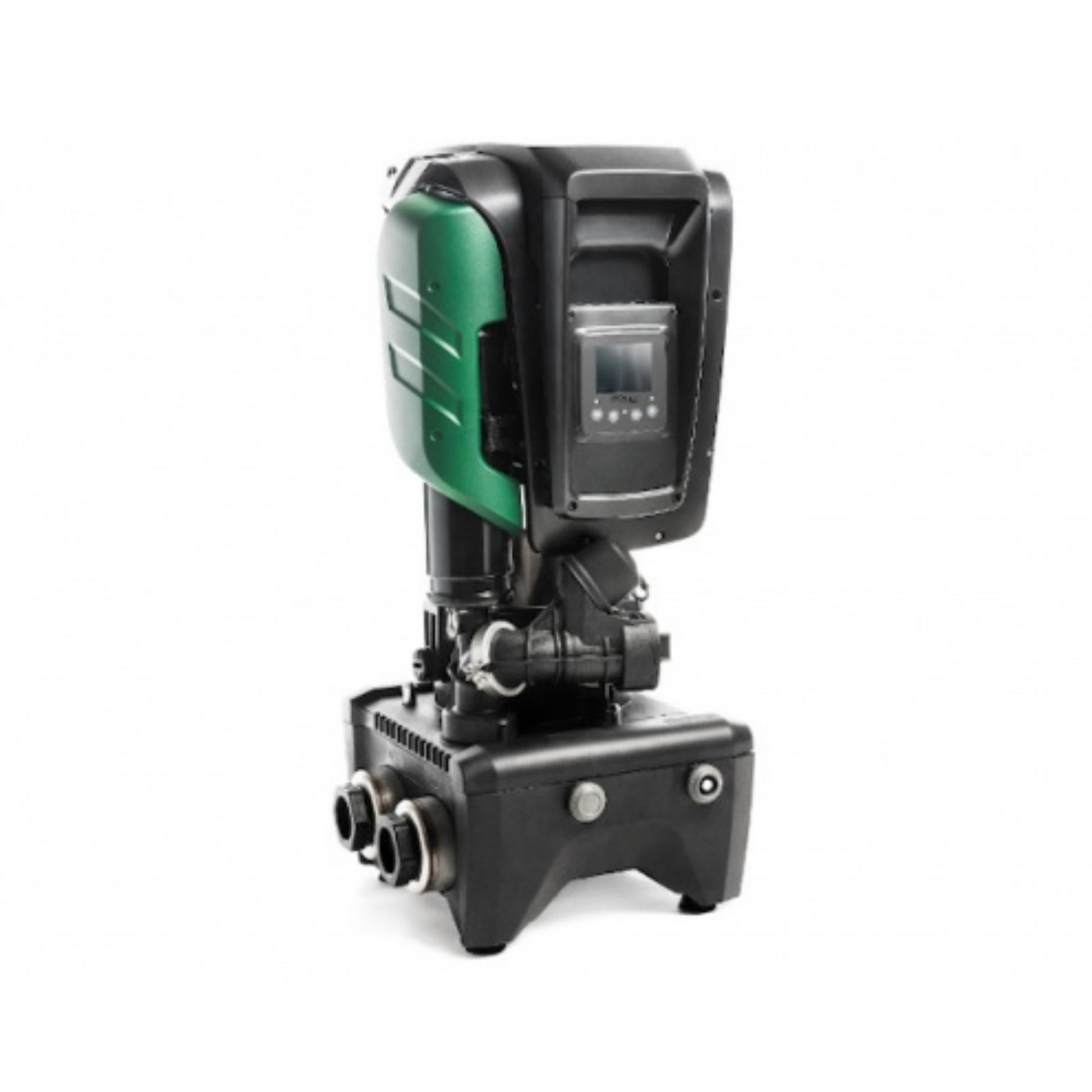

Large greenhouses and vertical farms often have three-phase service already in the pump room. Running on that supply keeps current per leg low, which eases wiring and breaker sizing. The inverter changes motor speed with demand, so the far bench sees nearly the same pressure as the near one. Energy use drops through the long hours when only a few valves are open. The pump mounts upright on an ESYDOCK MAX base, which is sold separately and carries the plumbing. Up to 4 pumps can join one group over a wireless link to share duty and cover a fault. Built-in Wi-Fi connects to DAB's H2D app for status, alarms and set point changes. An optional ESY I/O module adds wired inputs, relays and Modbus for a building controller. A check valve and expansion vessel live inside each pump, so most layouts need no separate pressure tank. Feed it clean water, and fit a regulator if supply pressure runs high.

Key Features

• Three-phase supply: Runs on 380-480V three phase, which keeps current low on each leg in commercial pump rooms.
• Inverter constant pressure: Motor speed follows demand, keeping emitter pressure even and cutting energy use at partial flow.
• Wide set point range: Adjust from 15 to 174 psi to suit drip, micro-spray or overhead systems.

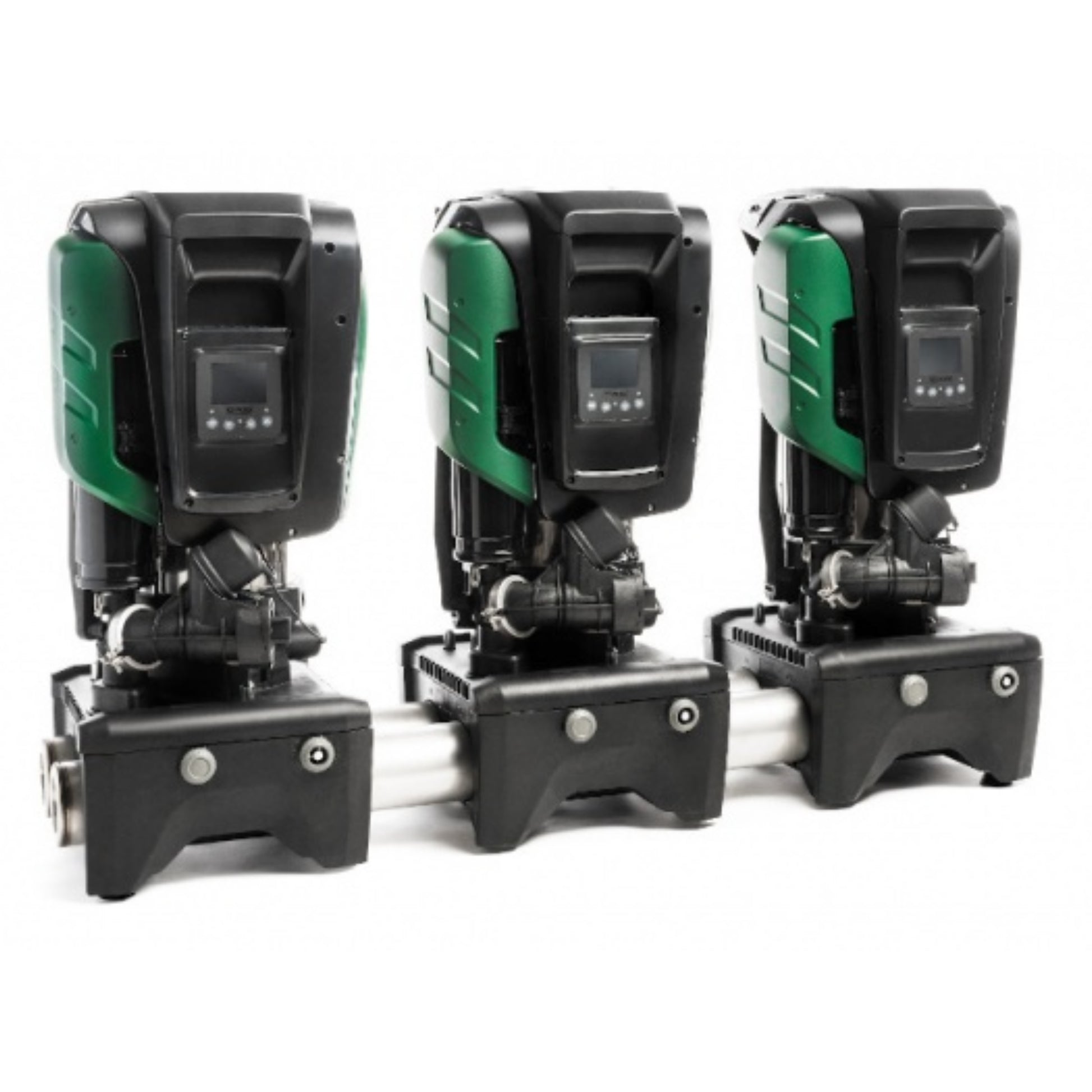

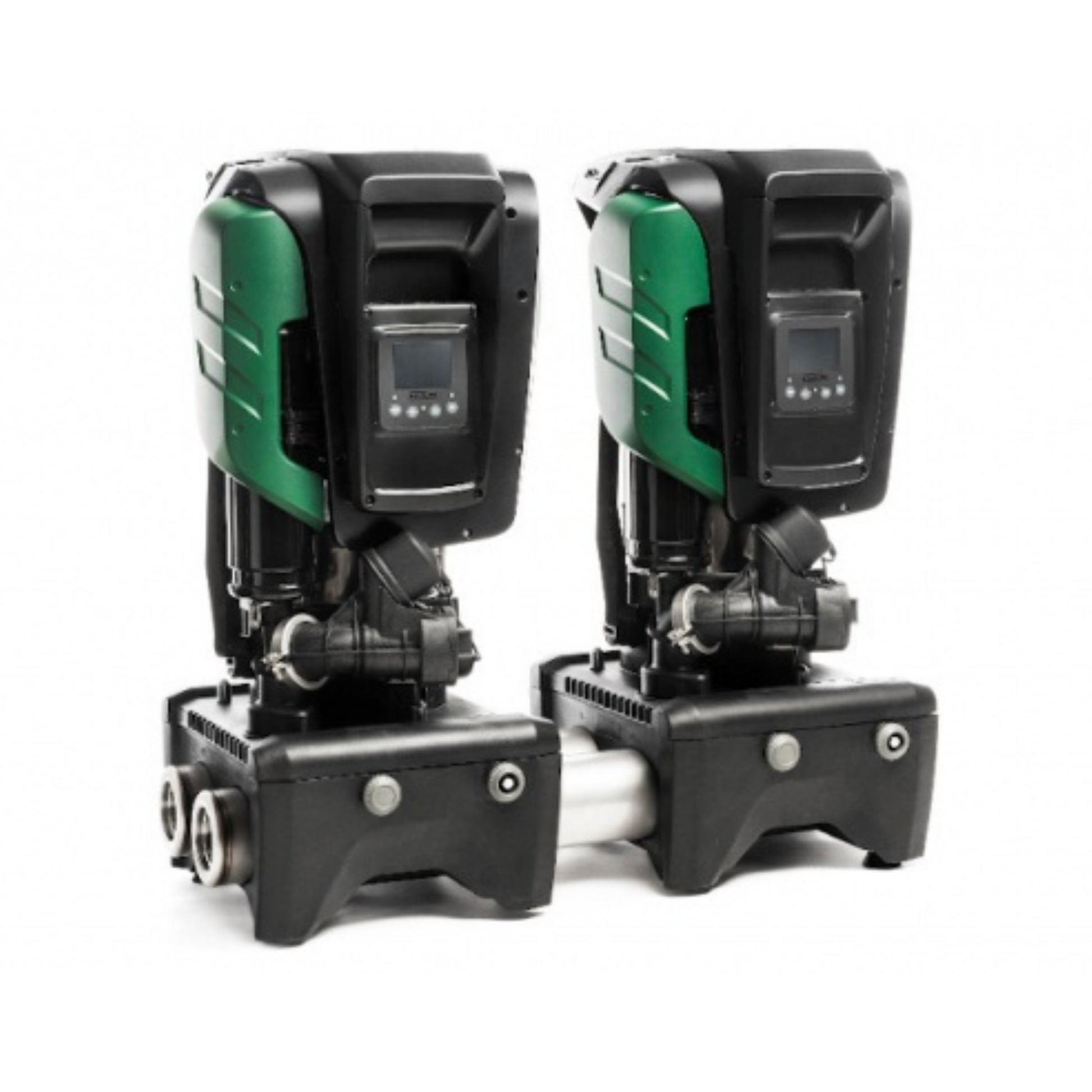

• Wireless grouping: Up to four units share duty and back each other up from a single control point.
• Wi-Fi and H2D app: Check status, read alarms and change settings from a phone.
• Potable water listings: UL, CSA and NSF/ANSI 61 and 372 listings suit supplies shared by people and crops.
