Anden A130 Filter Size: 14 x 19 x 1, and Not the A130F

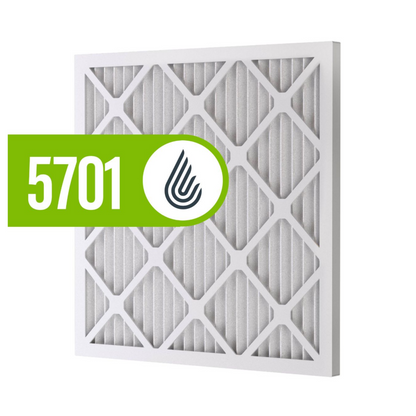

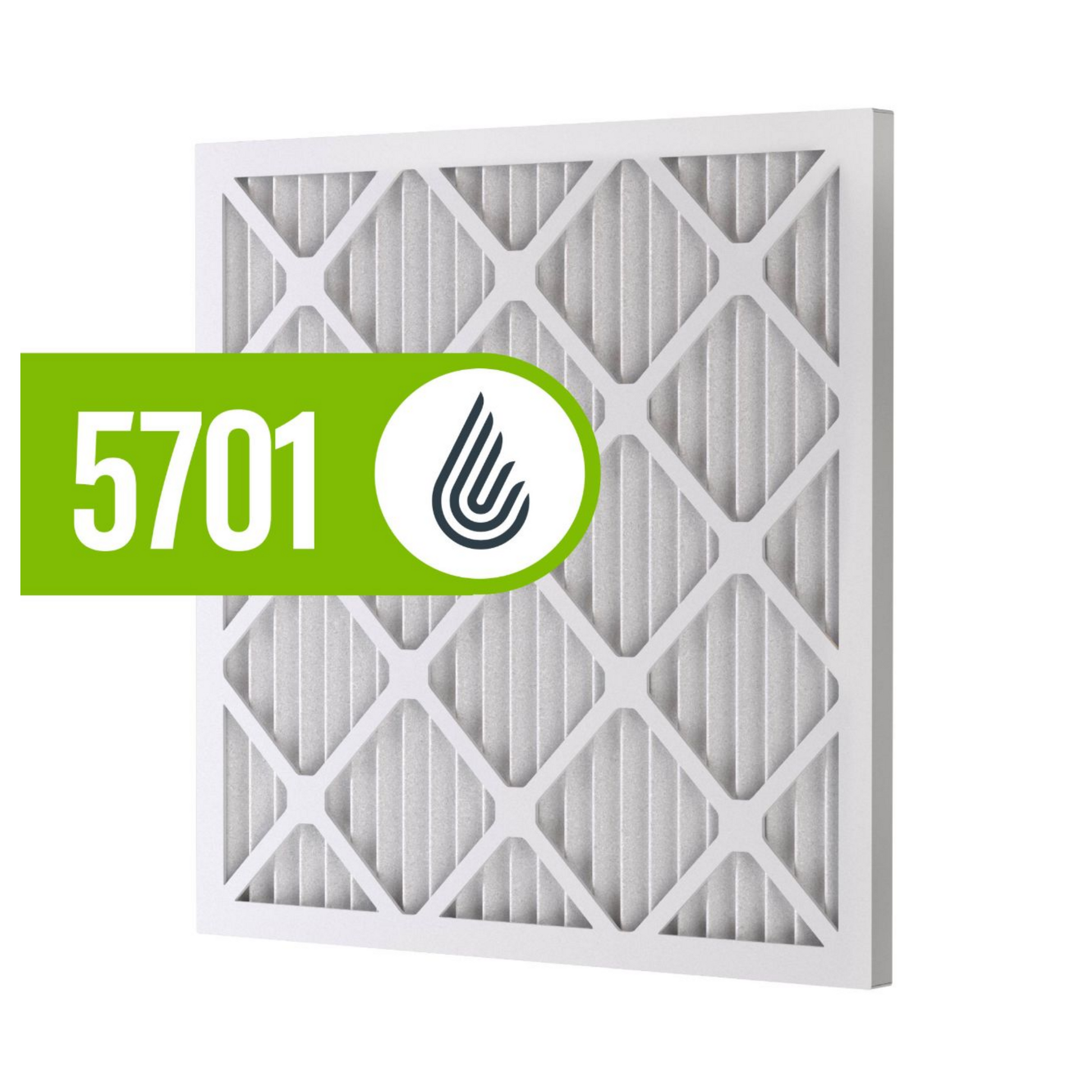

This is the panel for the fixed A130, the one that stays where you hang it. It measures 14 x 19 x 1 inches, part number 5701. The movable A130F is a different machine with a different panel: 16 x 19 x 1, part 5769. The 19 is the same on both, which is exactly what makes them easy to confuse. The 14 is not. Check the data plate for the F before matching anything.
Why a Fixed Unit Is Easier to Plan For
A ceiling-mounted machine lives above one room and sees a fairly steady dust profile. That makes the interval easier to plan than on a unit that gets wheeled between rooms. What the filter is doing is the same either way. MERV 11 is rated at 65 percent or better capture from 1 to 3 microns, and 85 percent from 3 to 10. Leaf dust, trimmed material and media grit all sit in that range. Anden folds the media into a multi-pleat. That puts more surface inside the frame than a flat panel carries, so it holds more before airflow drops off. The coil behind it is the reason the panel is there at all. A clean coil keeps the machine at its rated pints rather than drawing full power for fewer. The interval for the whole line is every 12 weeks or at the end of a harvest.
Key Features
- Anden part 5701: The number to match, one panel per unit

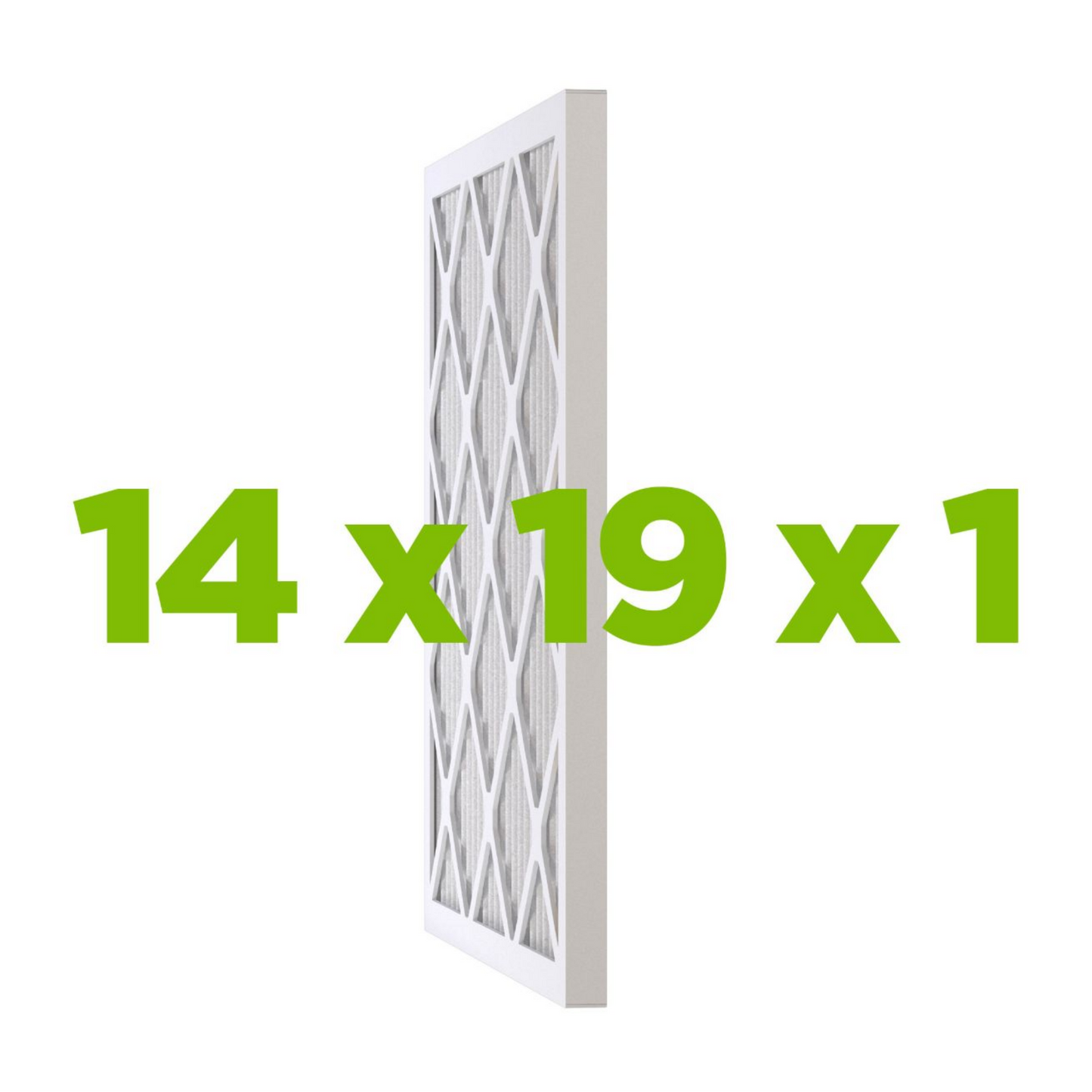

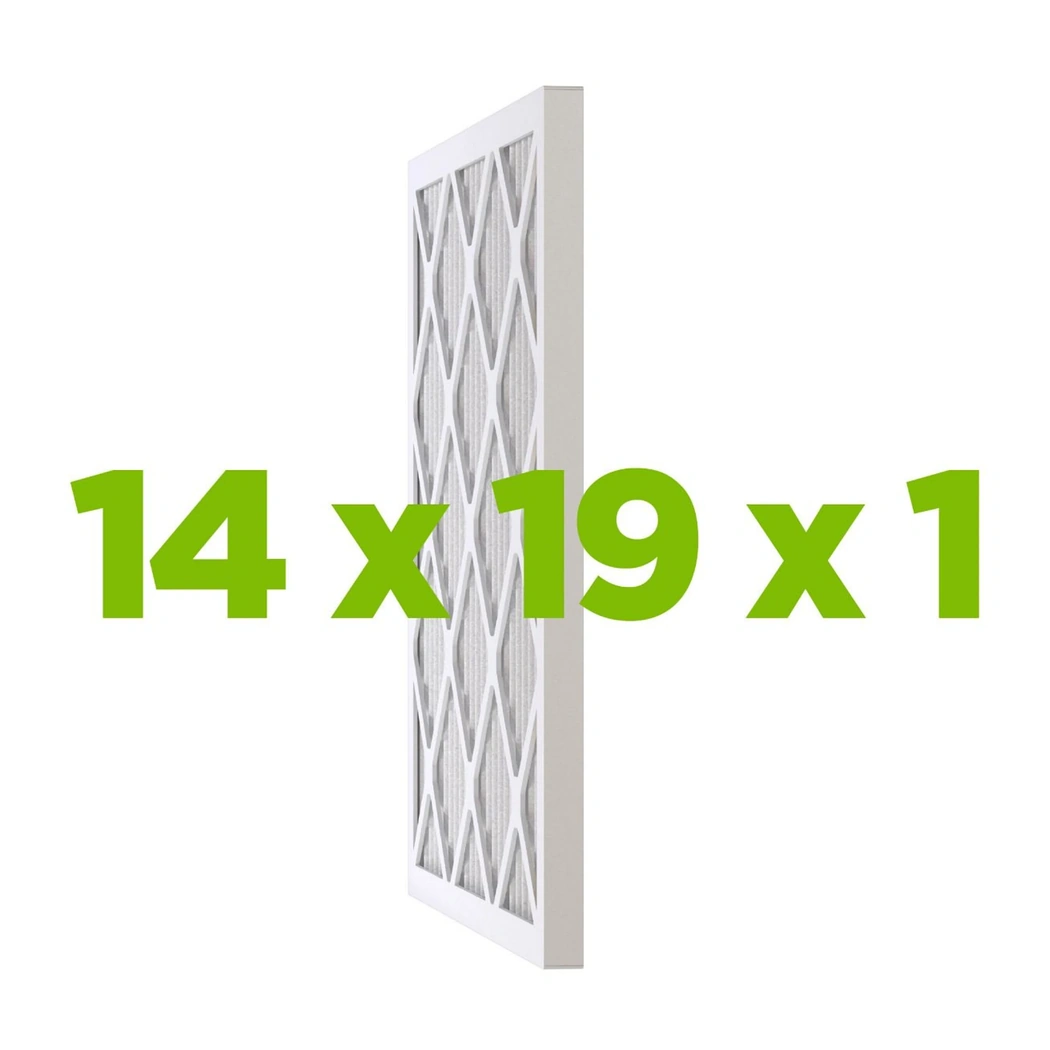

- 14 x 19 x 1: The size of part 5701 for the A130
- Not the A130F panel: The movable A130F takes part 5769 at 16 x 19 x 1; the shared 19 is what makes the pair easy to confuse
- MERV 11 multi-pleat media: Rated at 65 percent or better from 1 to 3 microns and 85 percent from 3 to 10
- Steady room, steady interval: A fixed unit sees one room's dust profile, which makes the change interval easier to plan than on a movable machine
- Keeps the coil clean: A loaded face makes the unit draw full power for fewer pints, so fresh media is the simplest way to hold output
- Every 12 weeks or every harvest: An interval tied to the grow cycle rather than to a calendar quarter
Technical Specifications
| Specification | Value |
|---|---|
| Anden part number | 5701 |
| Filtration grade | MERV 11 |
| Media type | Multi-pleat |
| Size | 14 x 19 x 1 in |
| Filters per unit | 1 |

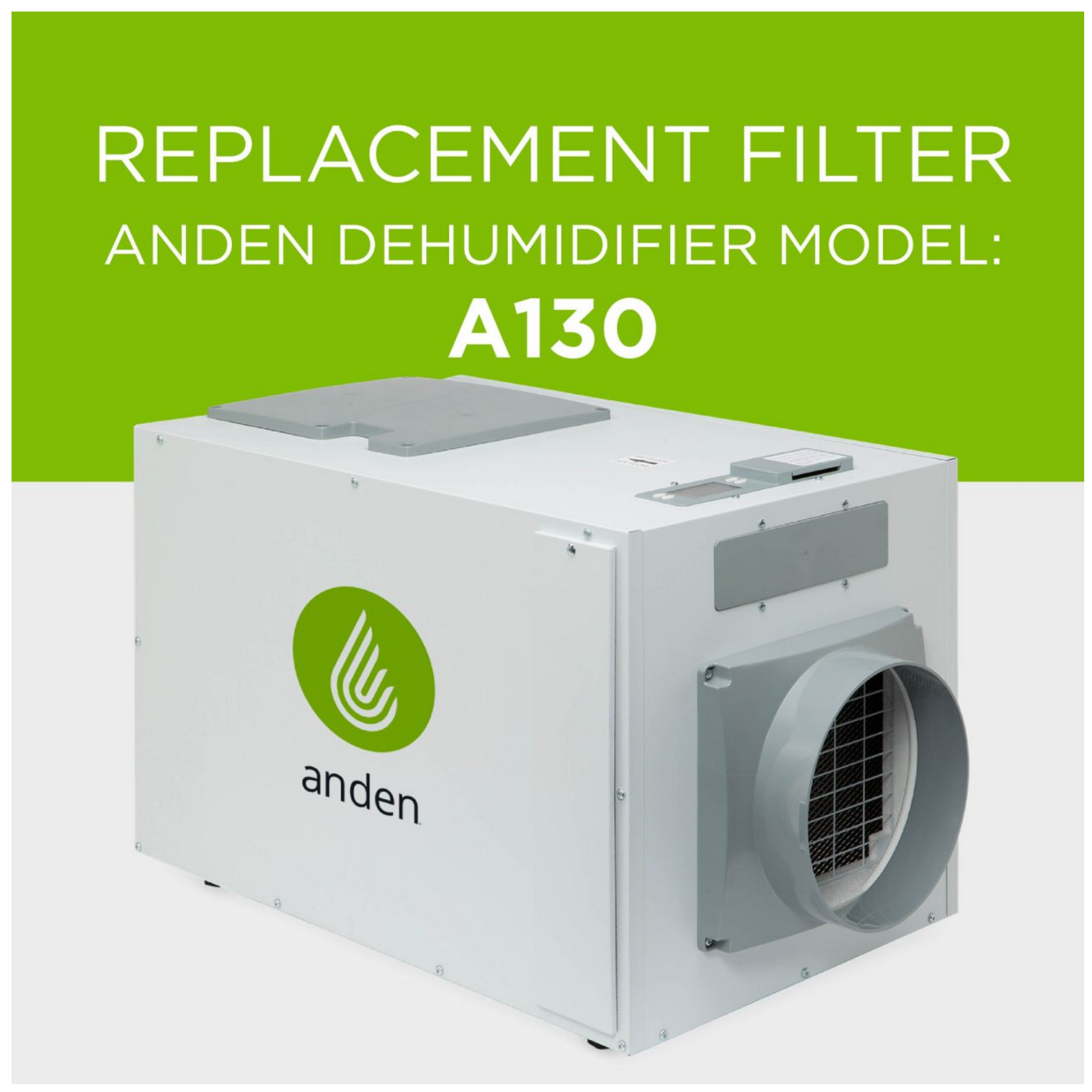

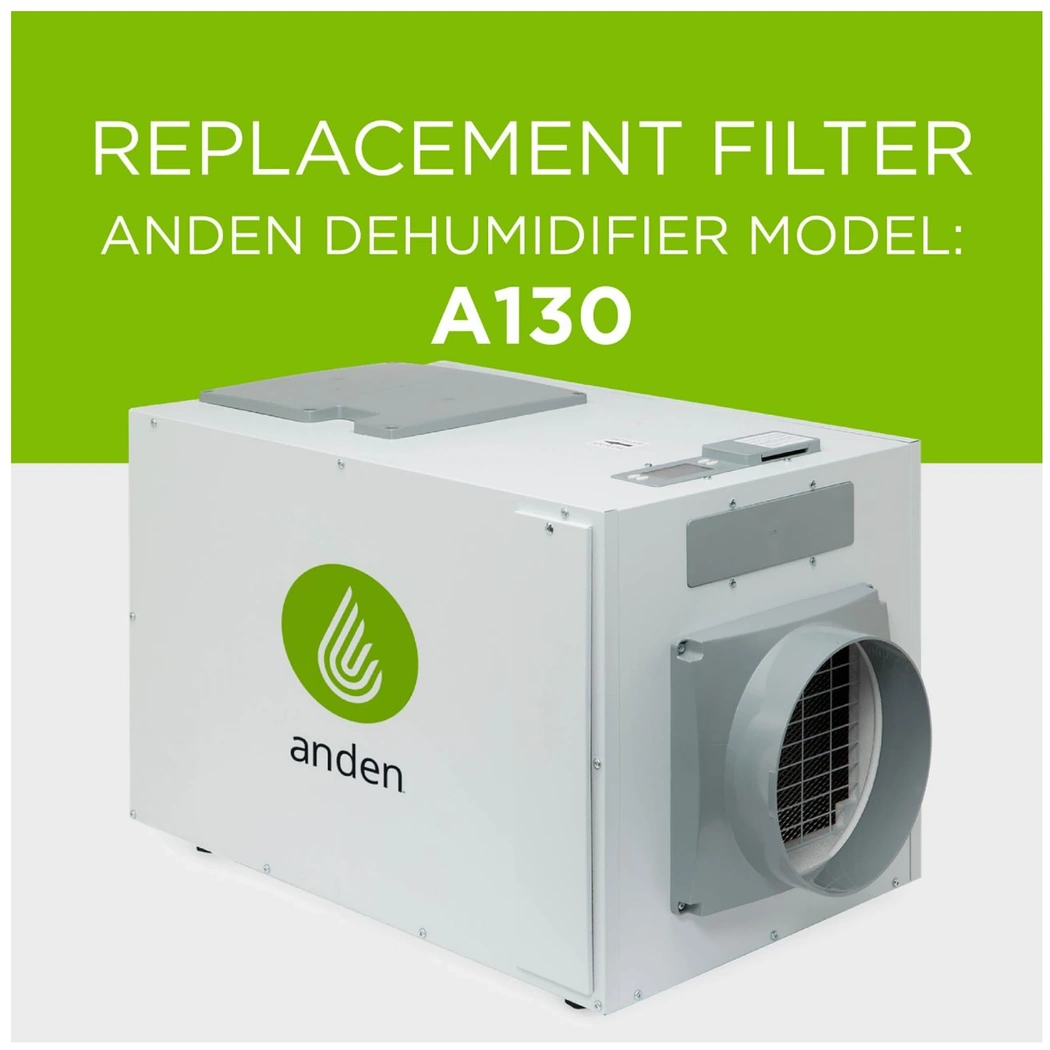

| Compatible models | Anden A130 (fixed) |
| Often confused with | Anden 5769, 16 x 19 x 1, for the movable A130F |
| Replacement interval | Every 12 weeks or at the end of a harvest |
